Diagnostic Connector - ABS: Testing and Inspection

ABS HARNESS AND INPUT SIGNAL INSPECTION
1. Disconnect the ABS CM connector with the ignition switch at OFF.

Caution: Be careful not to damage the terminals during inspection.

2. Insert a thin isolation plate to the short bar of the connector.

Part 1 Of 2:

Part 2 Of 2:

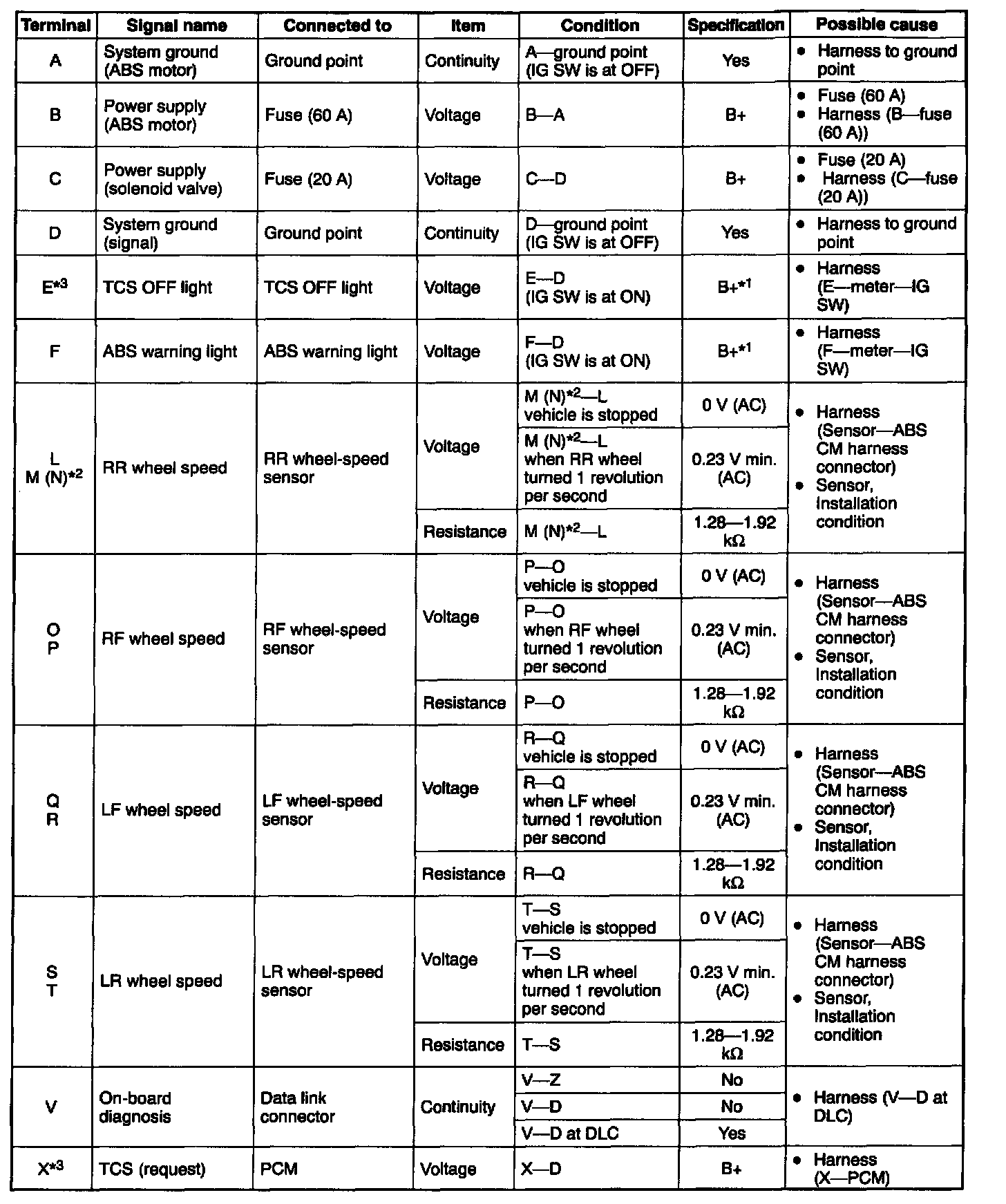

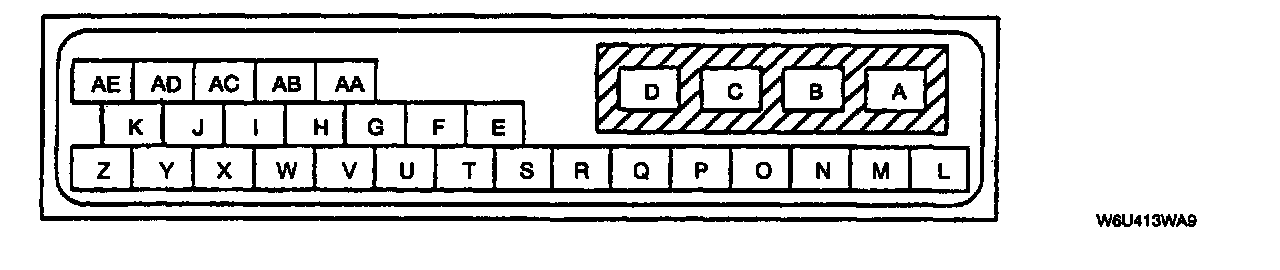

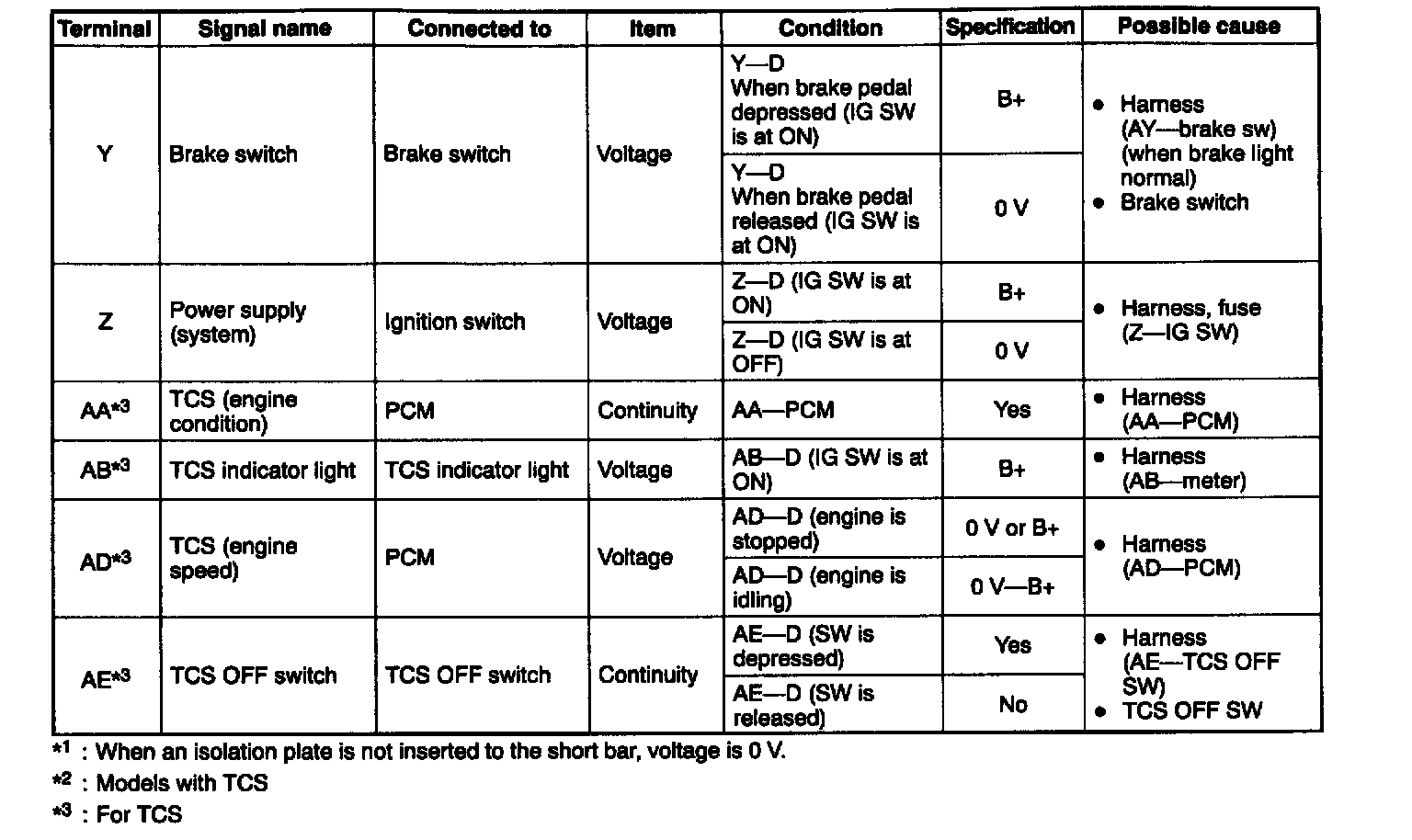

3. Attach a wire to the tester lead to avoid damaging the terminals then inspect voltage, resistance or continuity, referring to the image.
