Home >> Mazda >> 1999 >> 626 EX L4-2.0L DOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Driver/Vehicle Information Display >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Test 1

Pinpoint Test 1

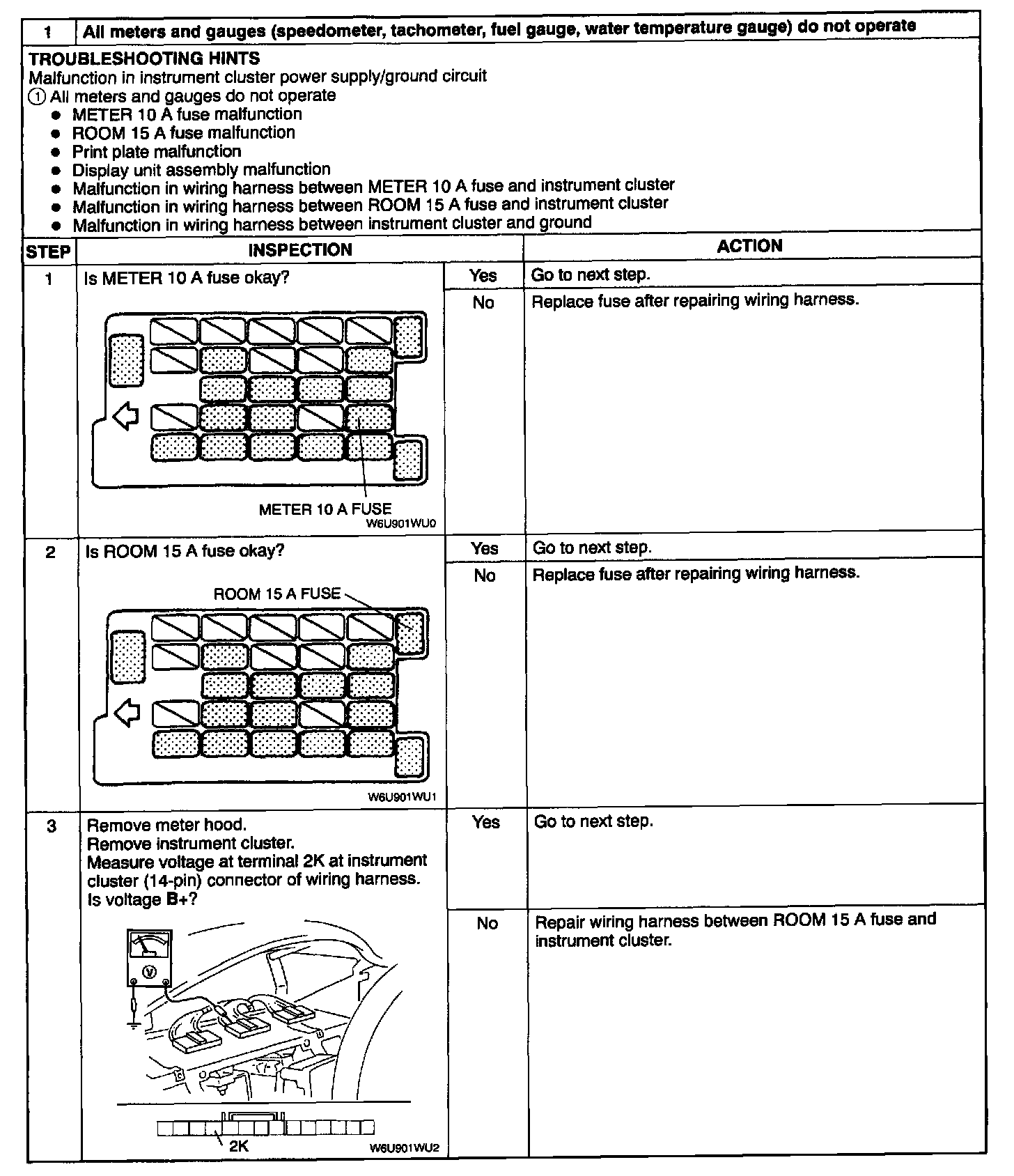

Steps 1 Through 3:

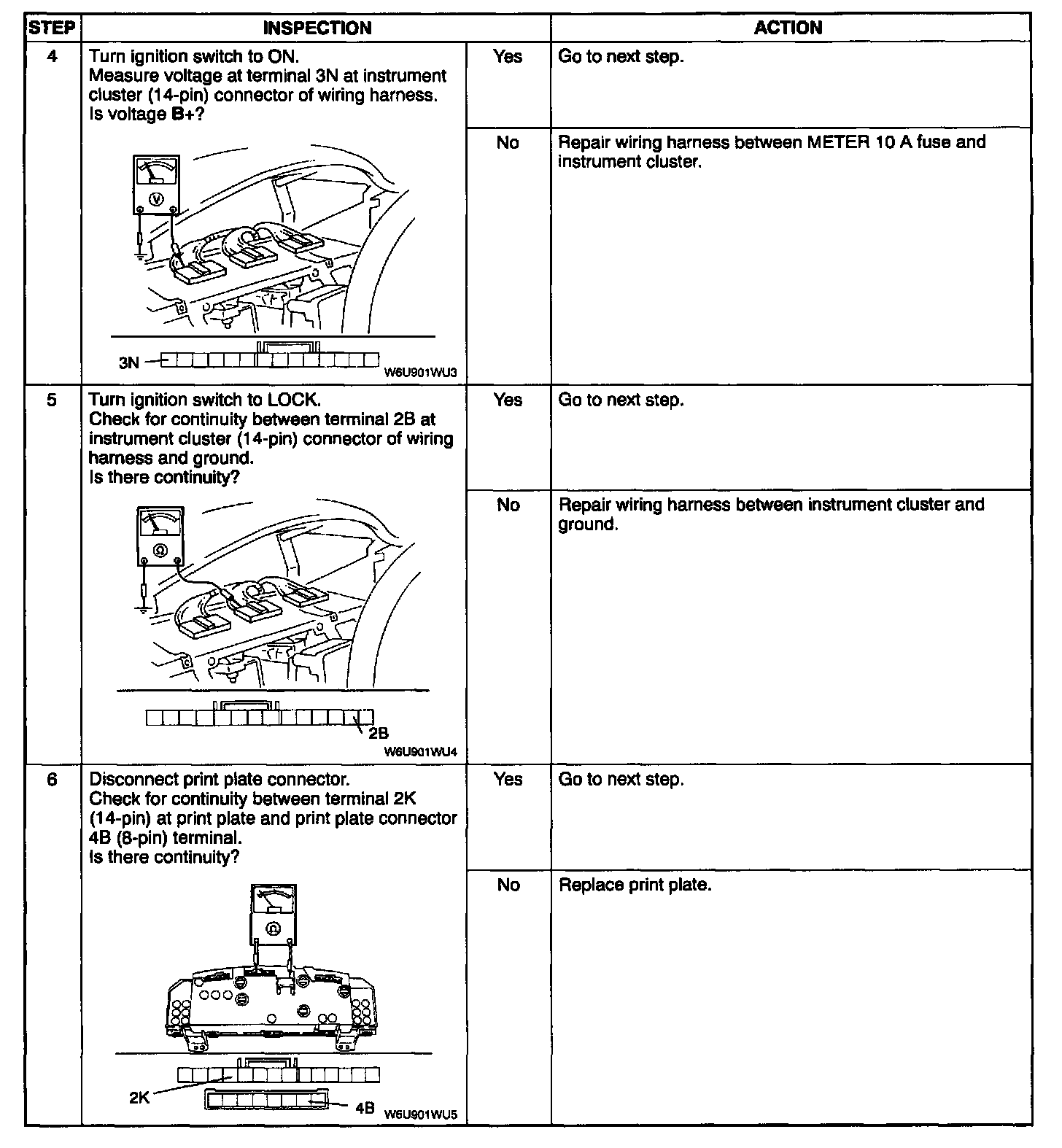

Steps 4 Through 6:

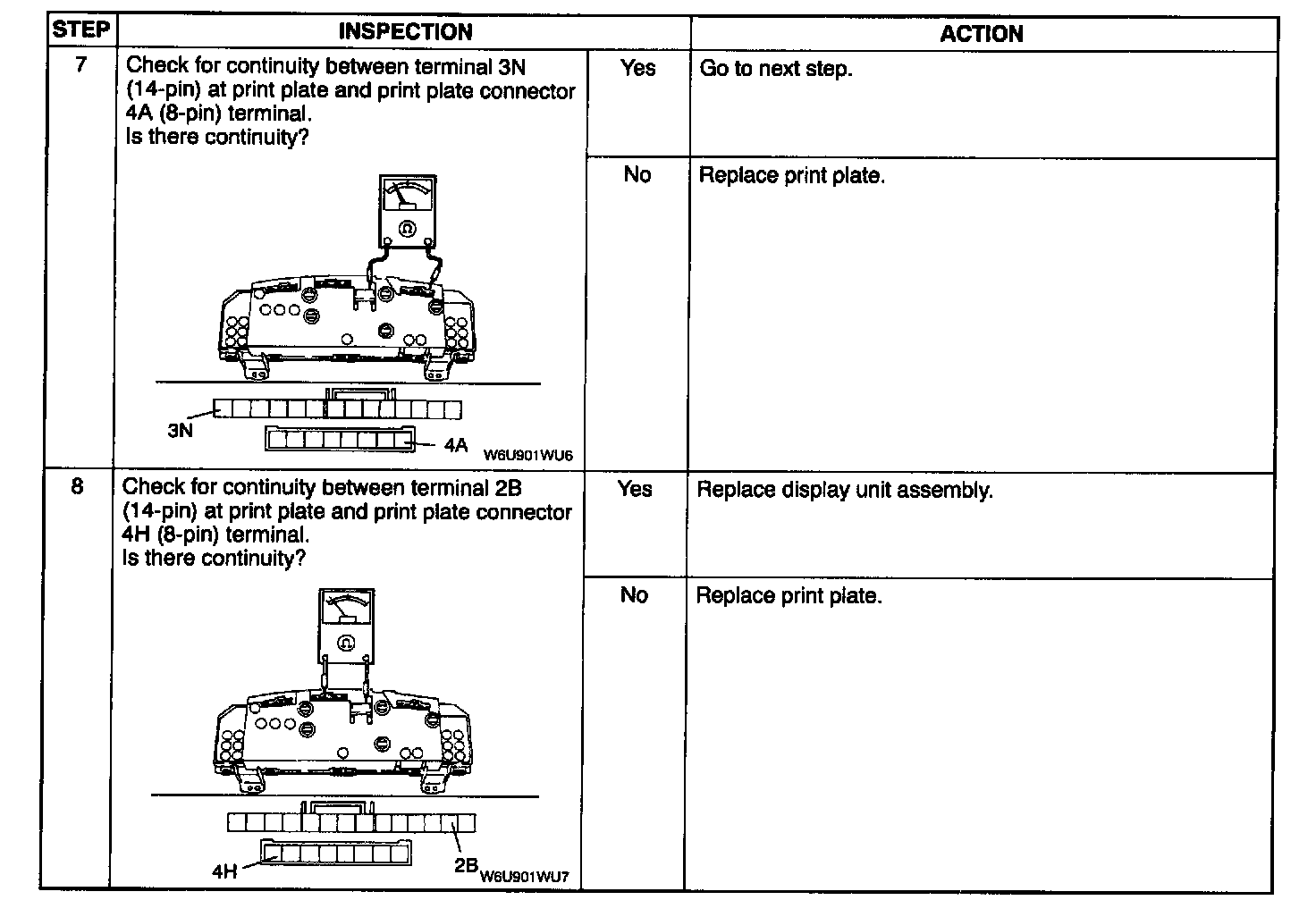

Steps 7 And 8:
