Radiator: Service and Repair

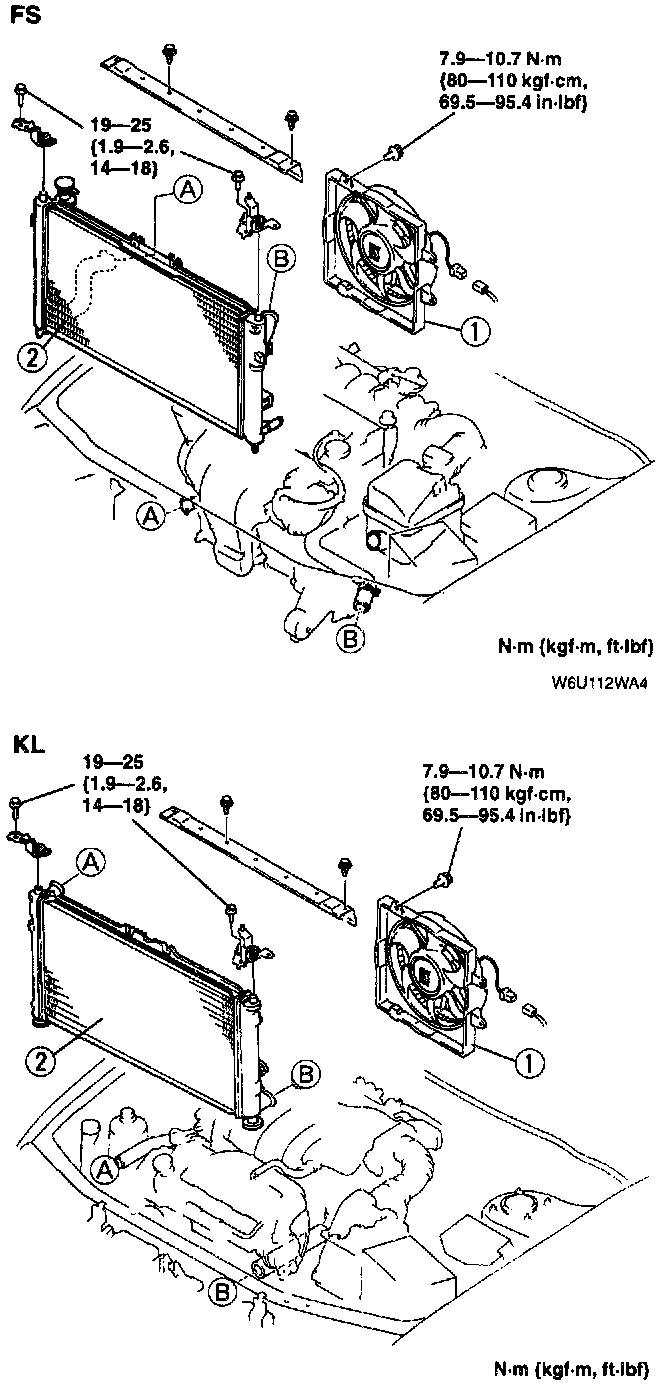

RADIATOR REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Drain the engine coolant.
3. Remove the fresh air duct.
4. Remove the condenser fan.
5. Remove the oil pipe. (FS: ATX)

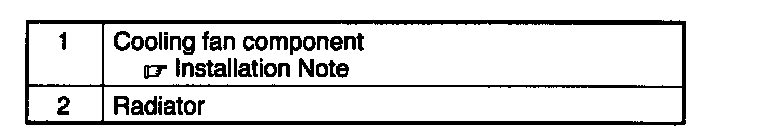

6. Remove in the order indicated in the table.
7. Install in the reverse order of removal.

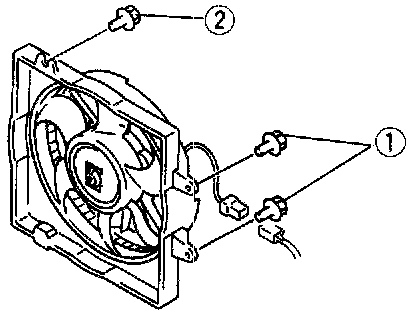

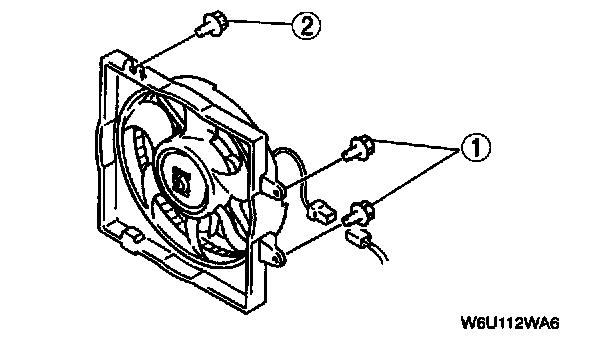

Cooling Fan Component Installation Note





- Tighten the cooling fan component bolts in the order shown.
