Primary Coil Winding

1. Disconnect the ignition coil connector.

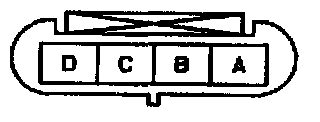

2. Measure the resistance by using an ohmmeter. From terminal A to D and terminal B to D and terminal C to D.

Specification: 0.45 - 0.55 ohms [20°C {68°F}]

If not as specified, replace the ignition coil.
