Fuel Injector Resistance Test

1. Turn off the ignition switch and disconnect the fuel injector connectors.

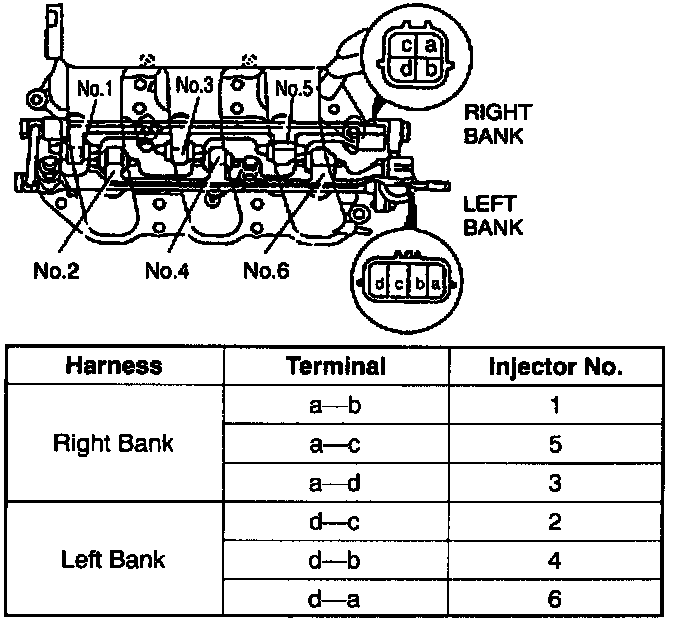

2. Measure resistance of the fuel injectors with an ohmmeter at the following conditions.
- If not as specified, inspect continuity of the harness and inspect for poor connection.
- If the harness is okay, replace the fuel injector.

Resistance: 12 - 16 ohms (at 20°C {68°F})
