Heated Oxygen Sensor Heater Inspection

1. Disconnect the heated oxygen sensor connector.

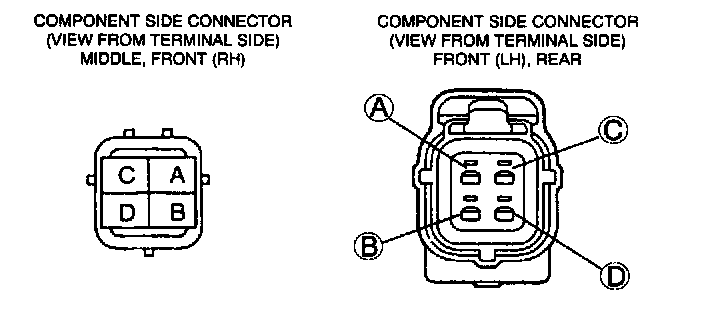

2. Measure the resistance between heated oxygen sensor terminals C and D by using an ohmmeter.
- If not as specified, replace the heated oxygen sensor.
- If okay, inspect related harness or connectors.

Specification
Approx: 6 ohms
