Home >> Mazda >> 1999 >> 626 ES V6-2.5L DOHC >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Pinpoint Tests >> Exterior Lighting System >> Pinpoint Test 8

Pinpoint Test 8

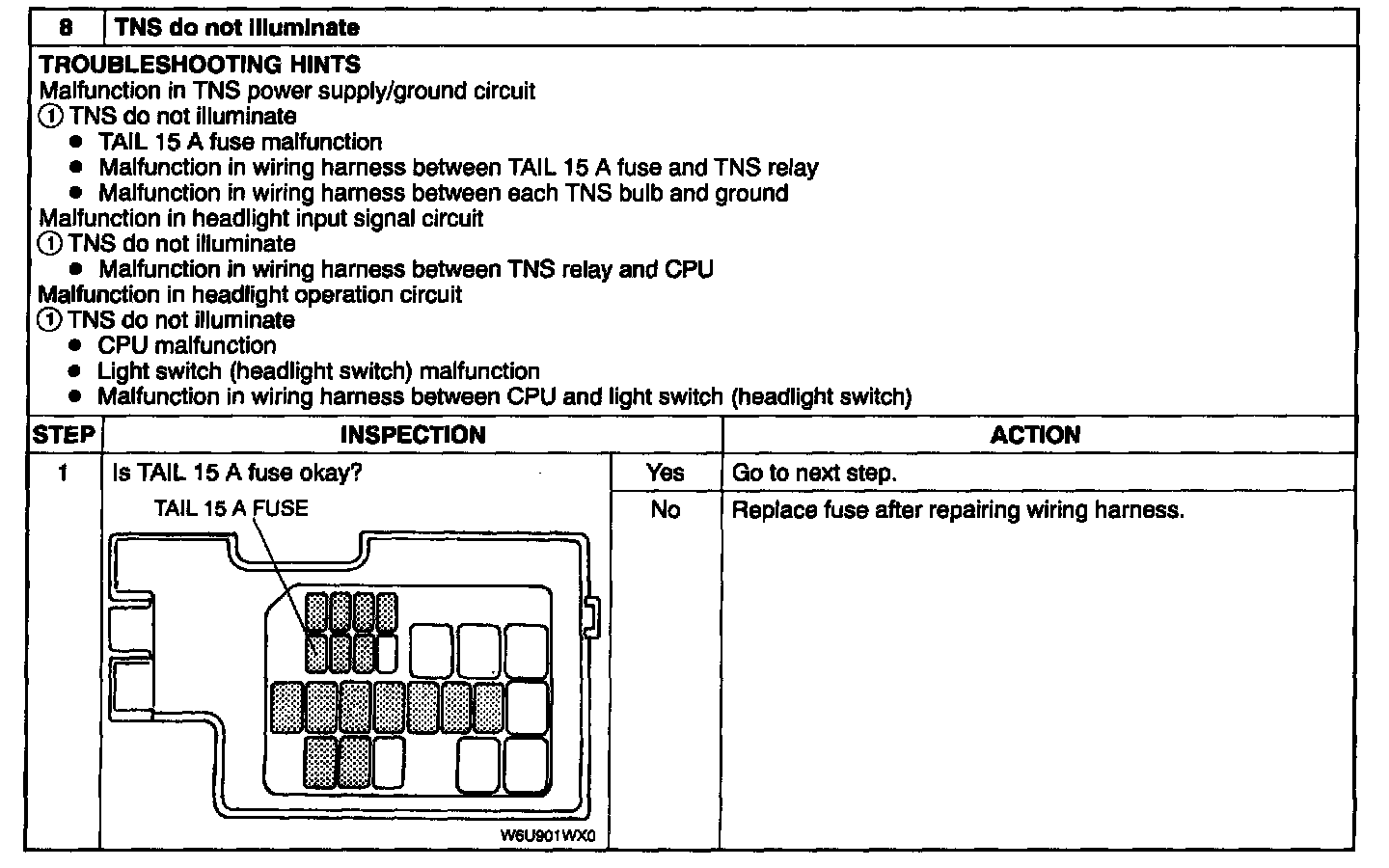

Step 1:

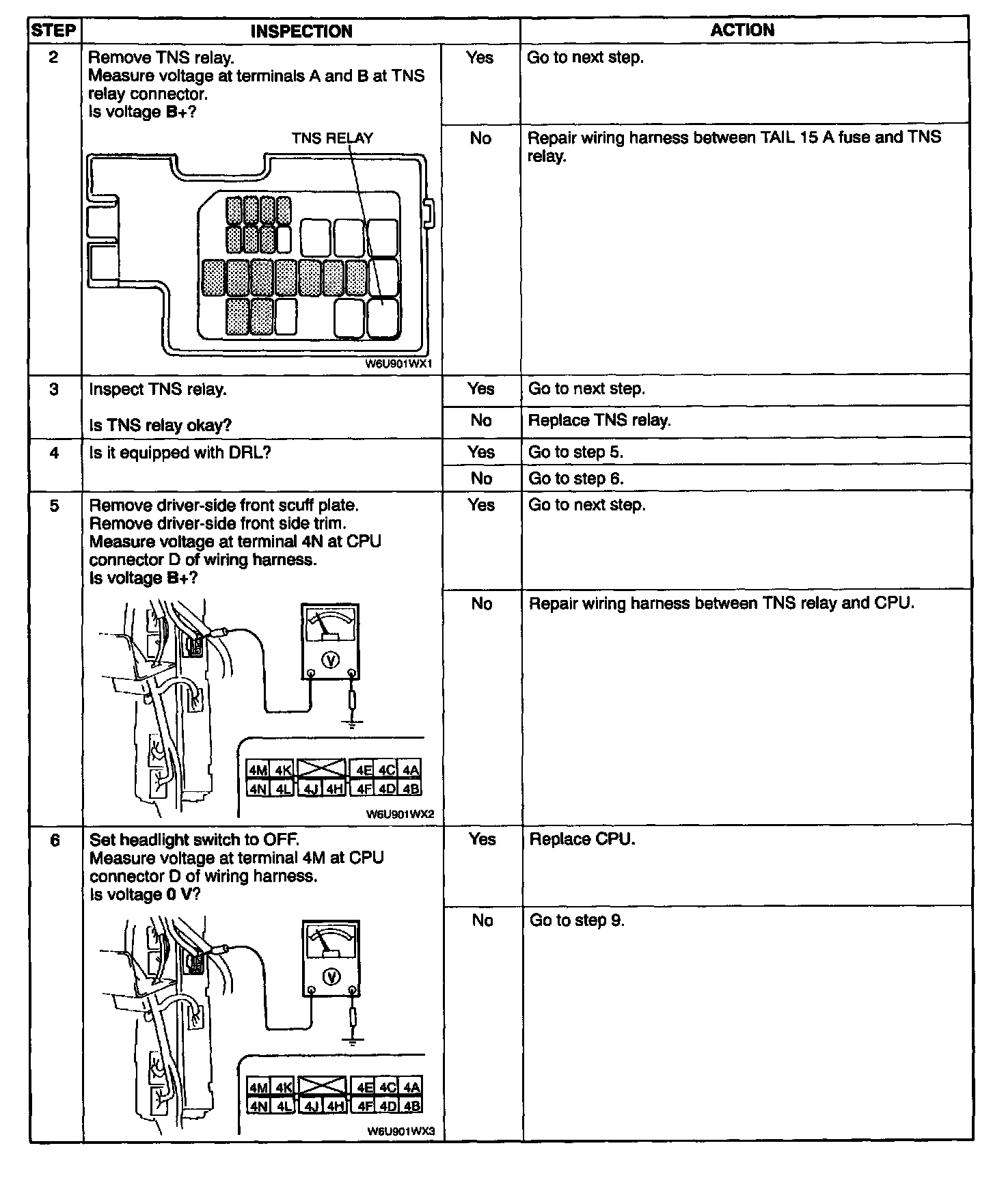

Steps 2 Through 6:




Steps 7 Through 10:
