Home >> Mazda >> 1999 >> 626 ES V6-2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cooling System >> System Diagram >> Without Immobilizer

Without Immobilizer

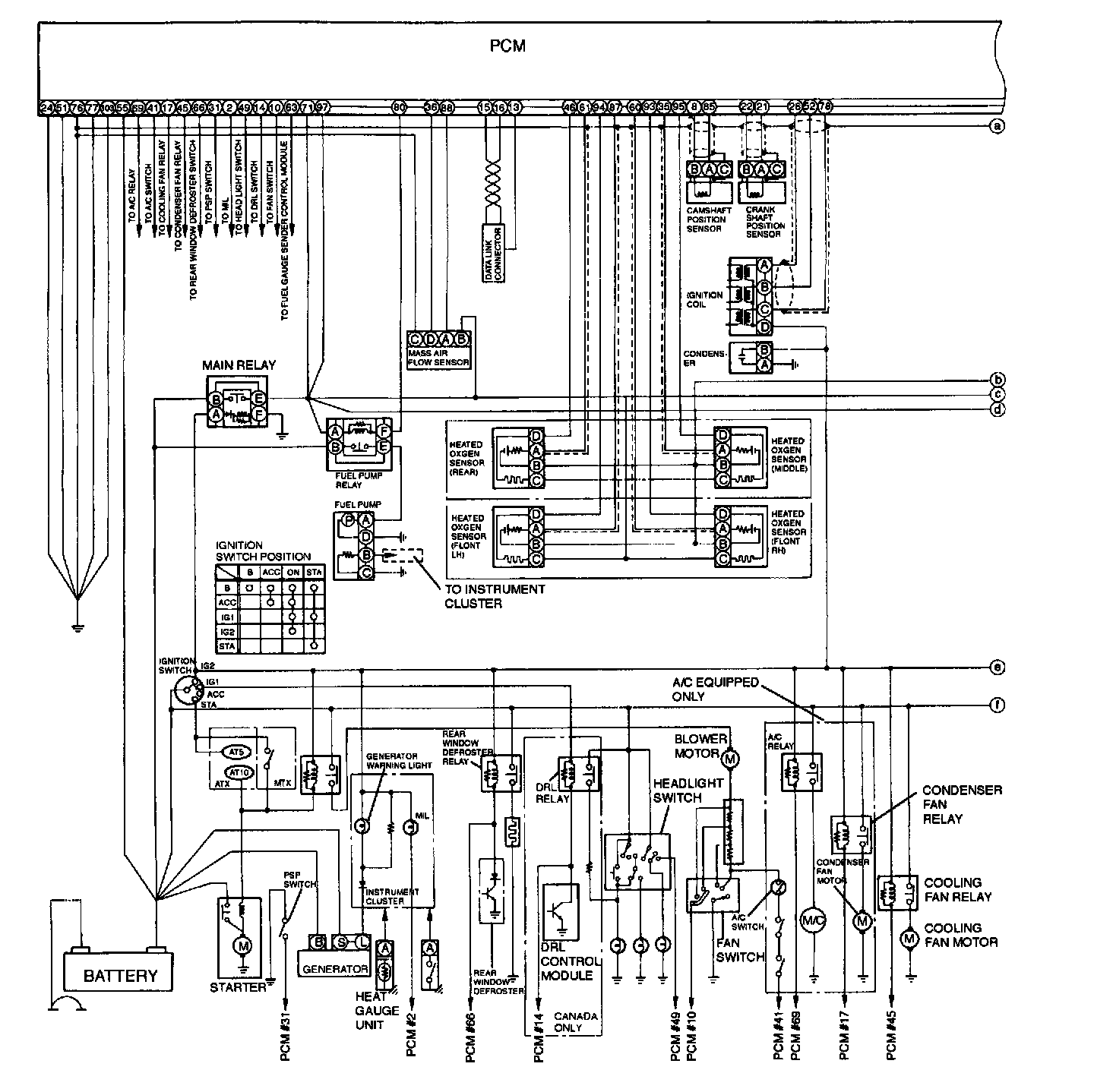

Part 1 Of 2:

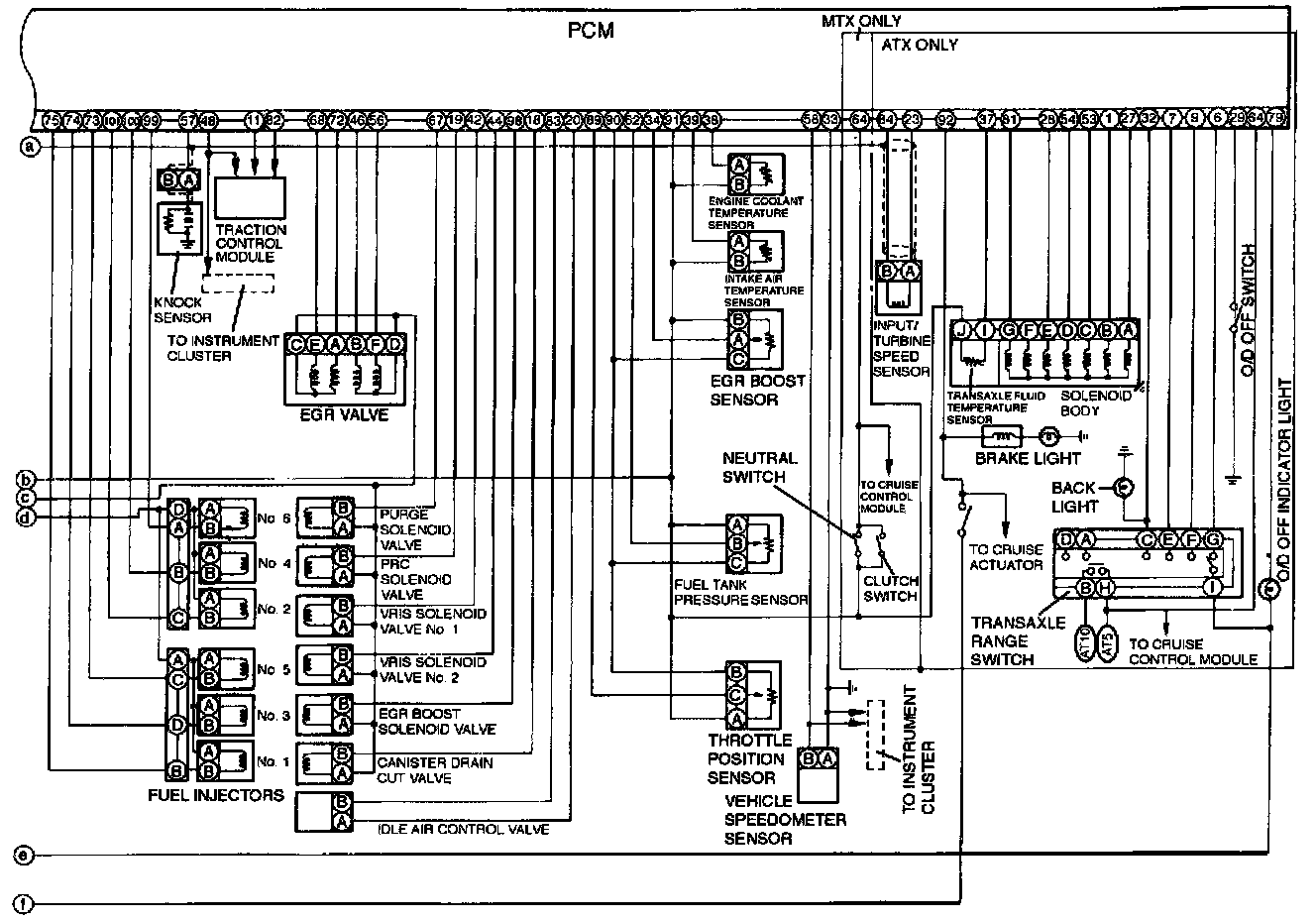

Part 2 Of 2:
