Transmissions Control Systems

DIAGNOSTIC TROUBLE CODES

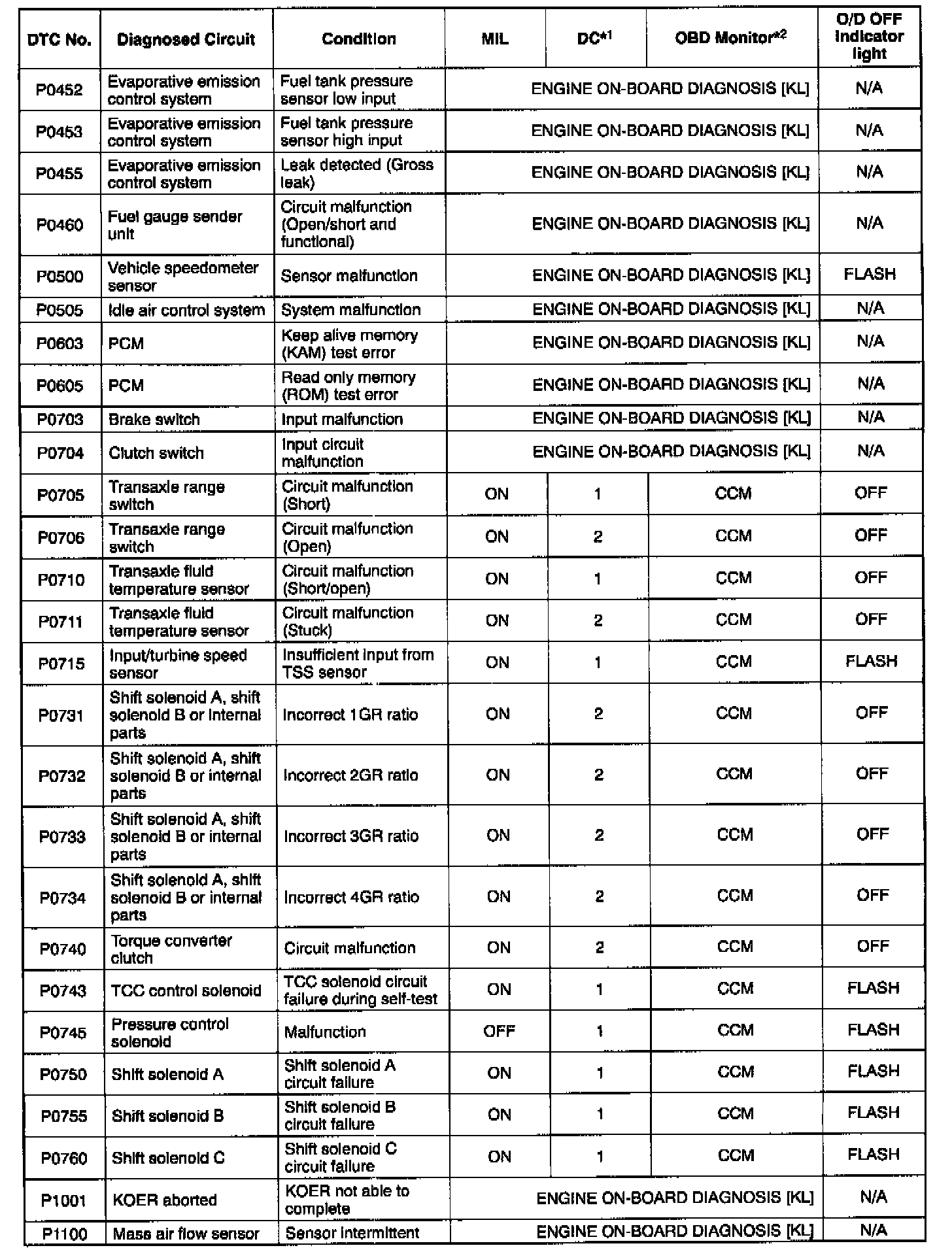

Part 1 Of 3:

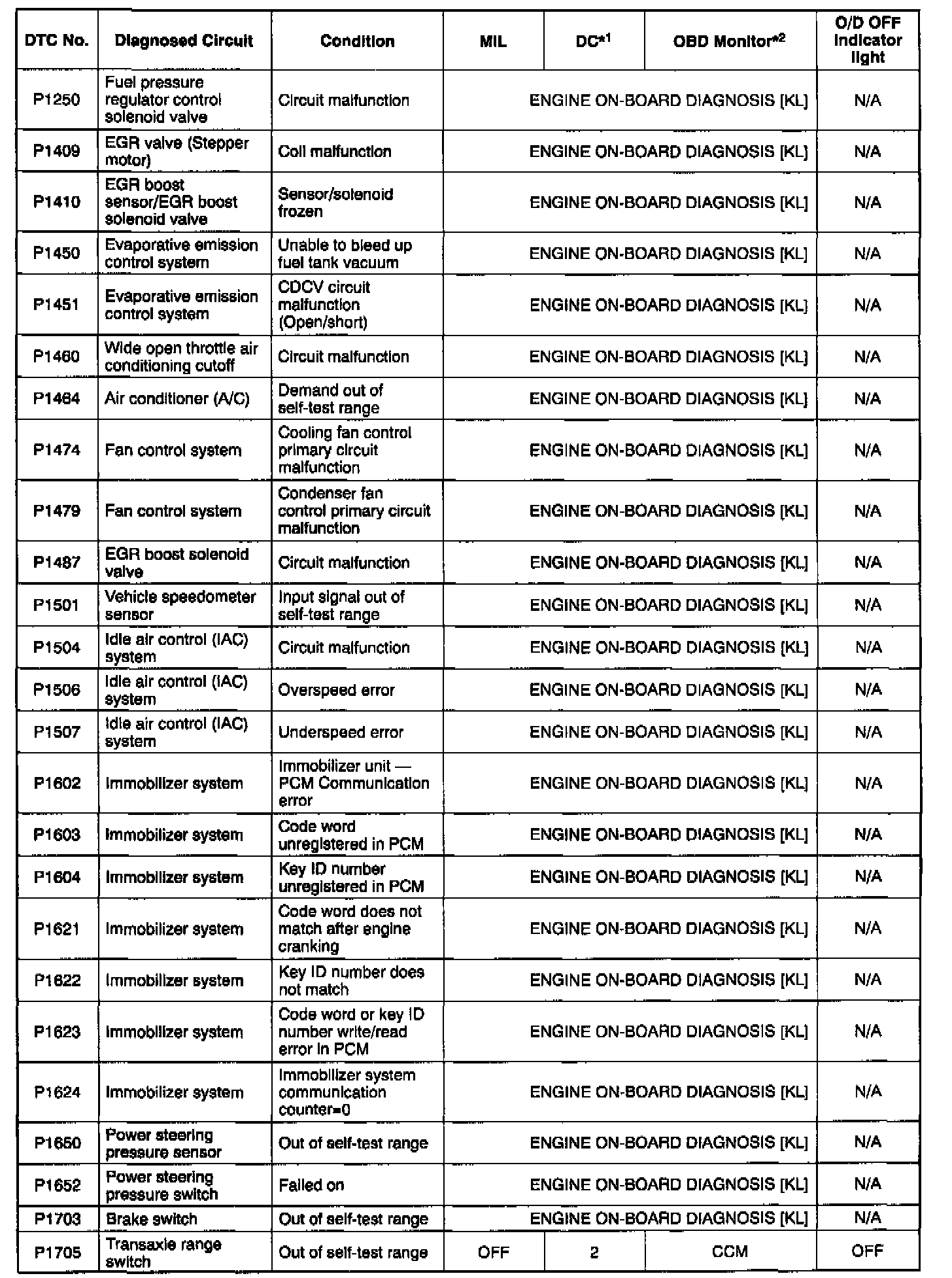

Part 2 Of 3:

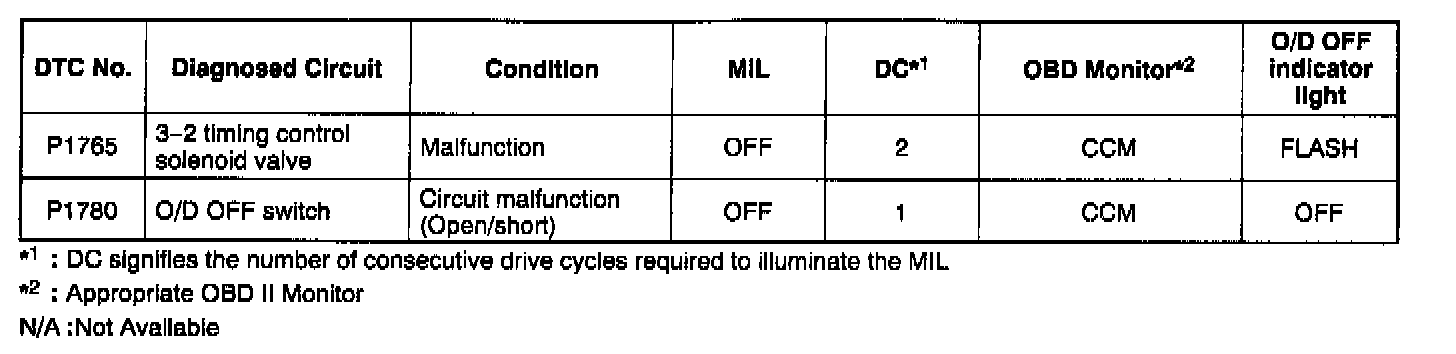

Part 3 Of 3:

Note
- If the Diagnostic Trouble Code (DTC) that you want to find is not in the chart, please refer to the "Diagnostic Trouble Code Number"chart.
- DTC's that are not directly related to Mazda vehicles may appear on the NGS tester screen.

Caution
- Do not disconnect the battery to clear diagnostic trouble codes. This will erase the keep alive memory Information which may cause a drivability concern.
- After repairing a failure, perform the After-repair Procedures to verity the fault has been corrected.
