Clutch Pedal Assembly: Service and Repair

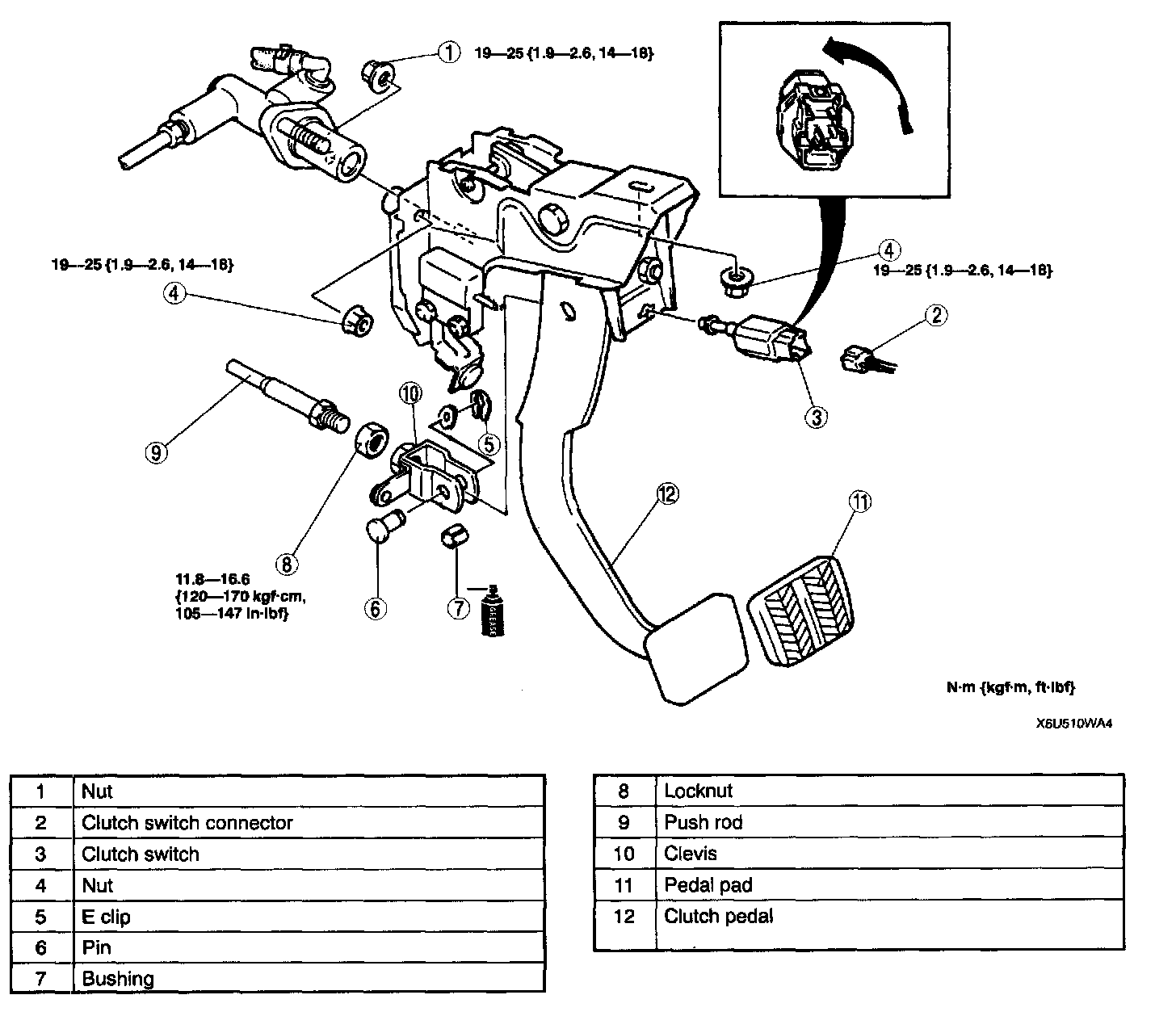

CLUTCH PEDAL REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the lower panel.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

Clutch Pedal Installation Note
- After installation, adjust the pedal height and free play.
