Solenoid Valves

Solenoid Body Removal / Installation [LA4A-EL].)
1. Remove the control valve body.

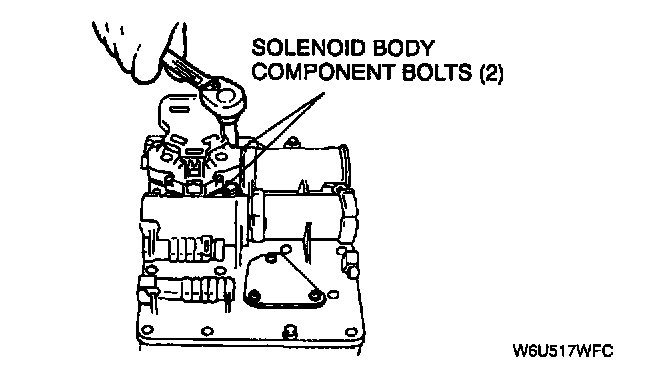

2. Remove the solenoid body component.

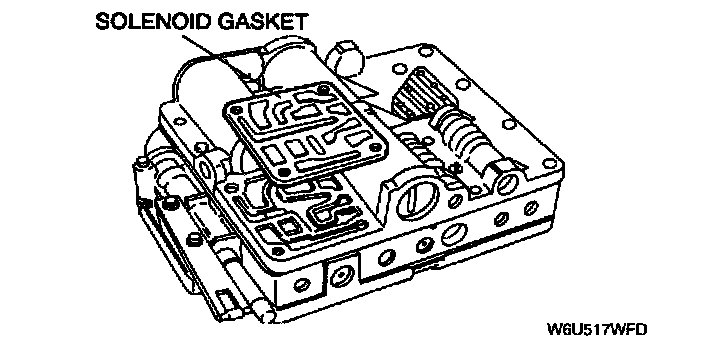

3. Remove the solenoid gasket from the accumulator body. Discard the solenoid gasket.

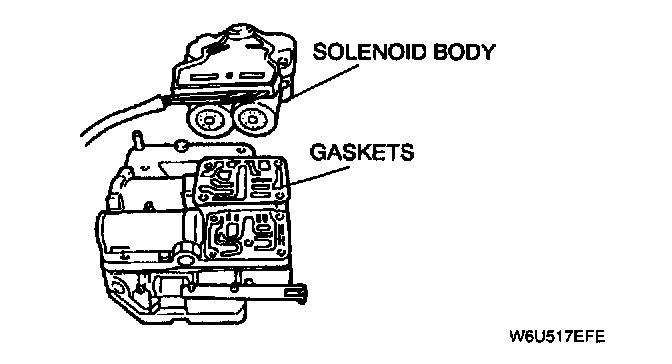

4. Install the solenoid body and a new gasket on the accumulator body with the bolts.

Note: Match the solenoid body gasket to the passages.

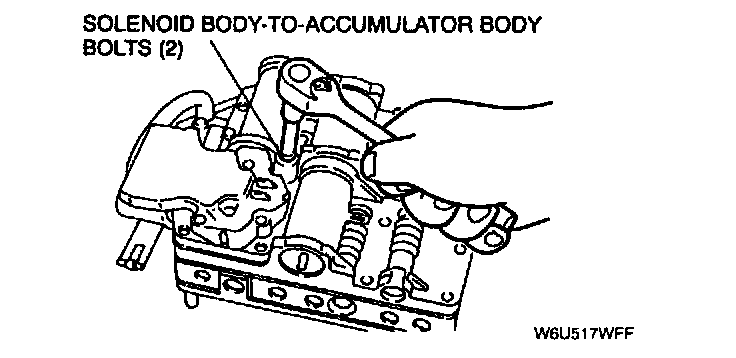

5. Tighten the bolts.
Tightening torque 10 Nm (1.1 kgf-m, 8 ft. lbs.)
6. Install the control valve body.
7. Carry out the time lag test and Line pressure test.
8. Carry out the road test.
