Home >> Mazda >> 1999 >> 626 ES L4-2.0L DOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Troubleshooting Charts >> 32: Other: Transaxle Overheating

32: Other: Transaxle Overheating

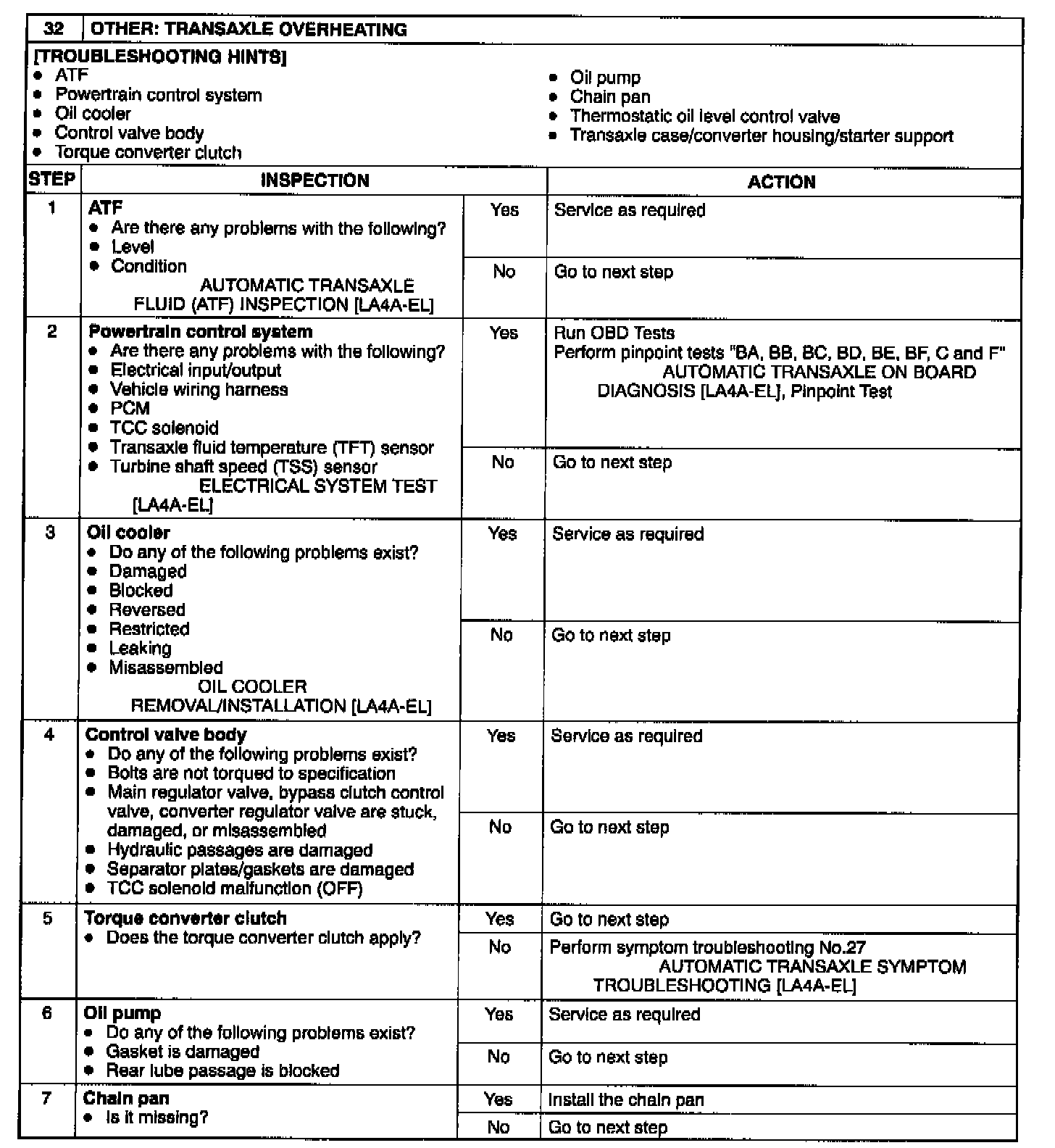

Steps 1-7:

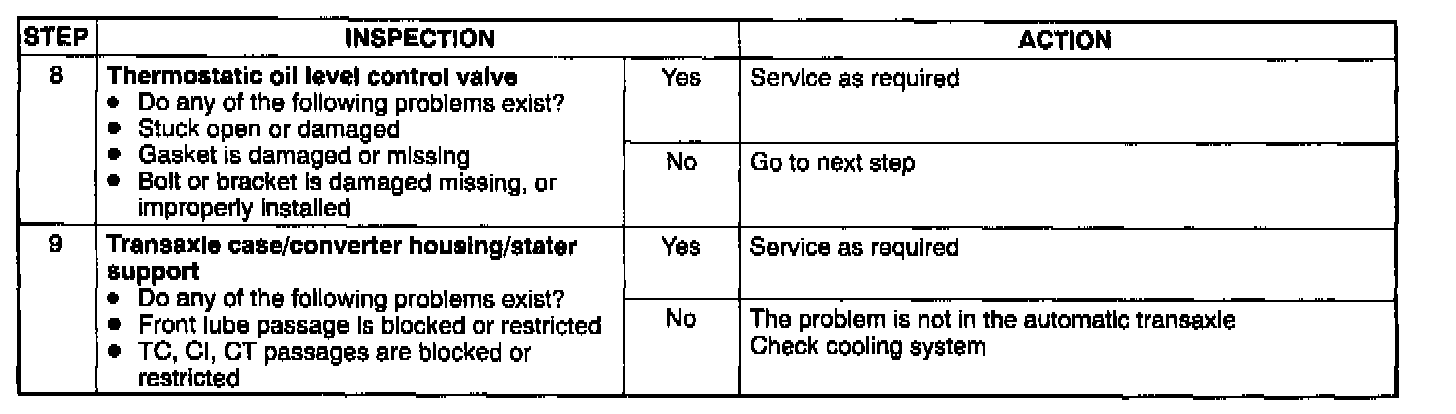

Steps 8-9:





Diagnostic Procedure
