Curiosii for ever!: Car repair manuals for everyone.
Home >> Mazda >> 1999 >> 626 ES L4-2.0L DOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Troubleshooting Charts >> 22: Shift Concerns: Harsh 1-2 Shift

22: Shift Concerns: Harsh 1-2 Shift

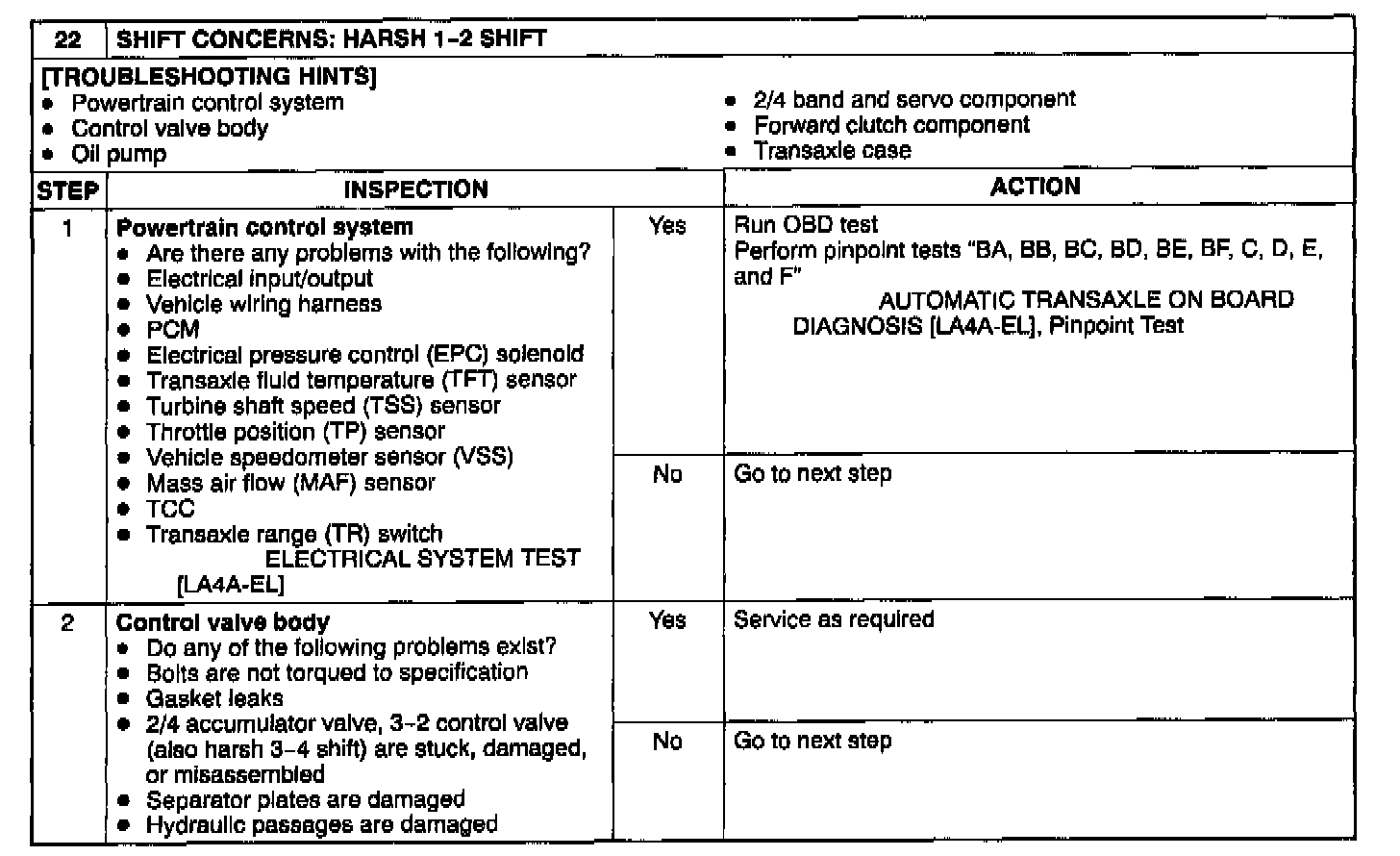

Steps 1-2:

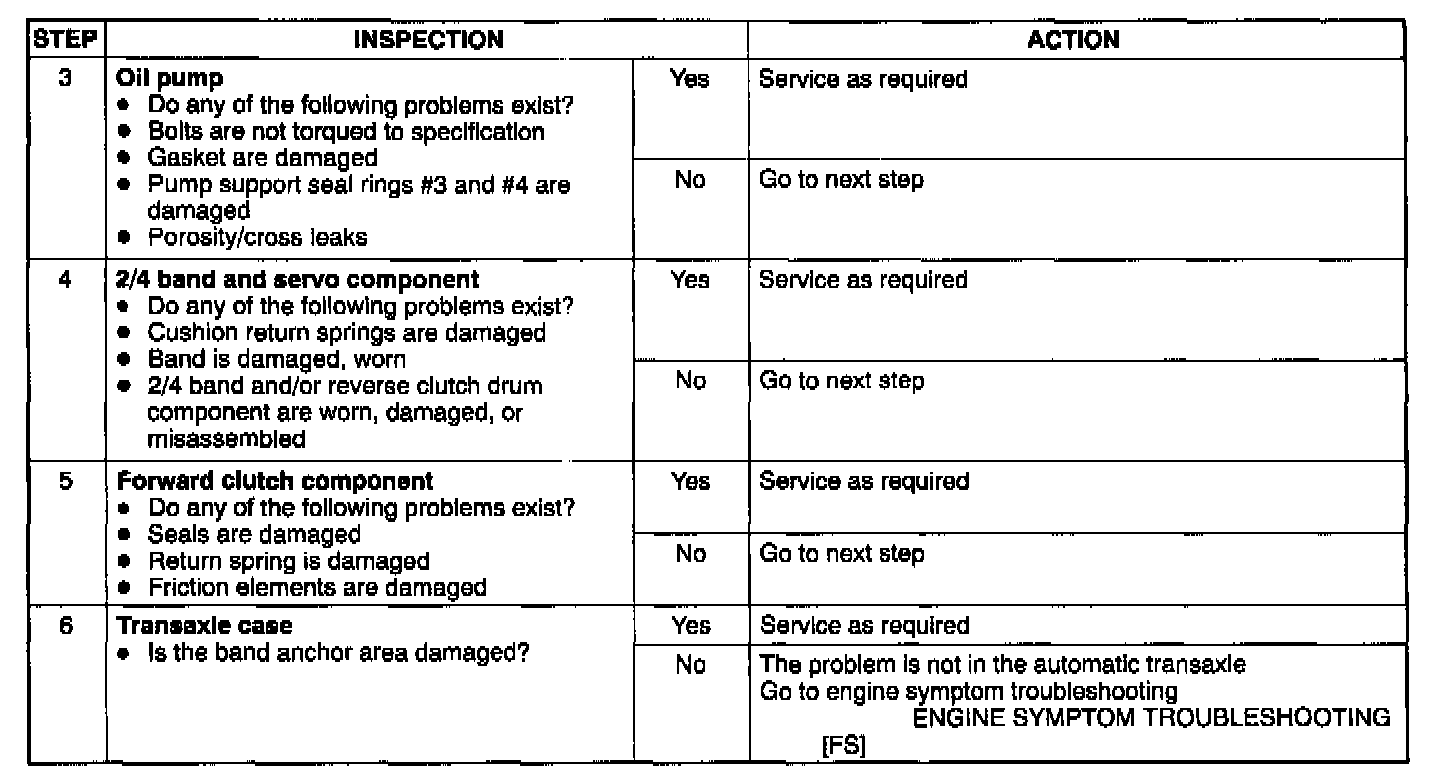

Steps 3-6:





Diagnostic Procedure
