Rear

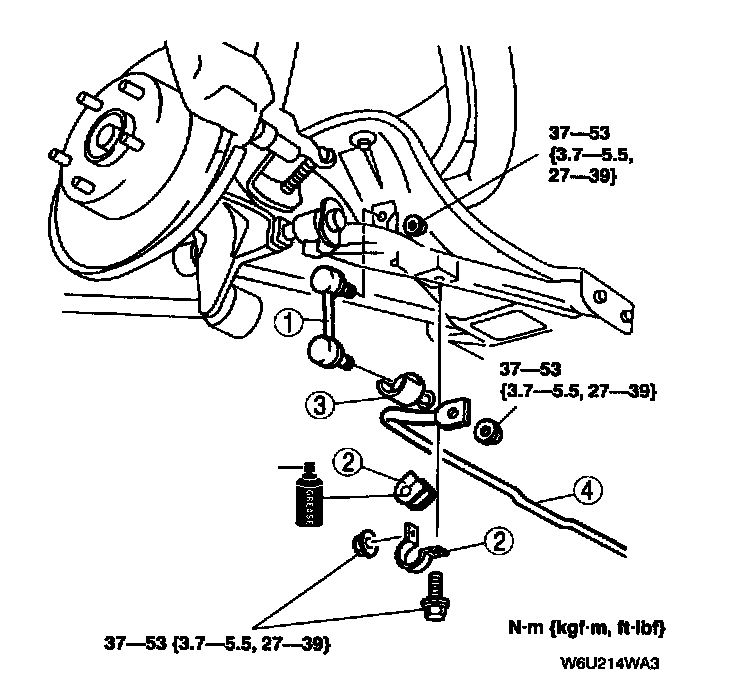

REAR STABILIZER REMOVAL/INSTALLATION

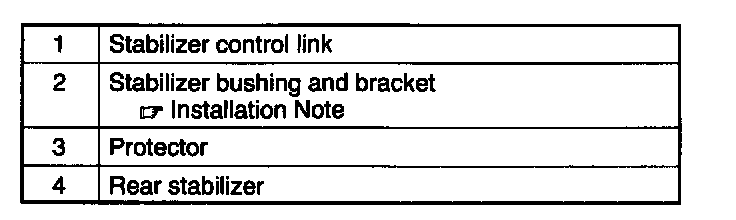

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

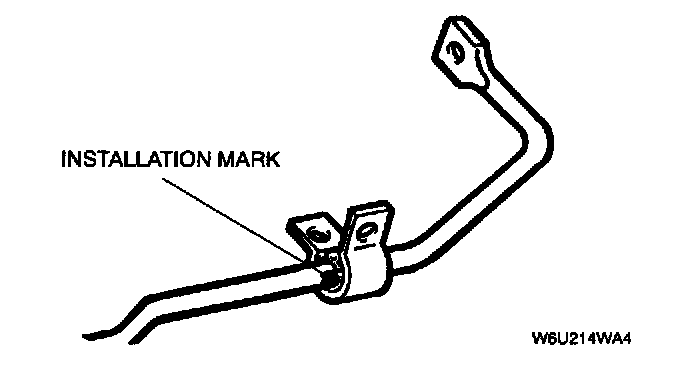

Stabilizer Bushing And Bracket Installation Note





- Align the bushing with the installation mark on the stabilizer bars.

STABILIZER CONTROL LINK INSPECTION
1. Remove the stabilizer control link from the vehicle.
2. Inspect for bending and damage.
- Replace the control link as necessary.
3. Measure the ball joint starting torque.
1) Rock the ball joint stud side to side 10 times.
2) Rotate the ball joint stud 10 times.





3) Measure the starting torque by using a suitable Allen socket and a torque wrench.
- Replace the control link if not within the specification.

Starting torque: 0.2 - 1.5 Nm {2.0 - 15 kgf.cm, 2 - 13 inch lbs.}
