Front Seat Belt

CAUTION: Do not disassemble the retractor. The Emergency Locking Retractor (ELR) has a spring that will unwind If the retractor is disassembled. The spring cannot be rewound by hand. If this occurs, the ELR will not work properly.

NOTE: Front seat belts are fitted with a load limiter.






1. Remove the B-pillar lower trim.

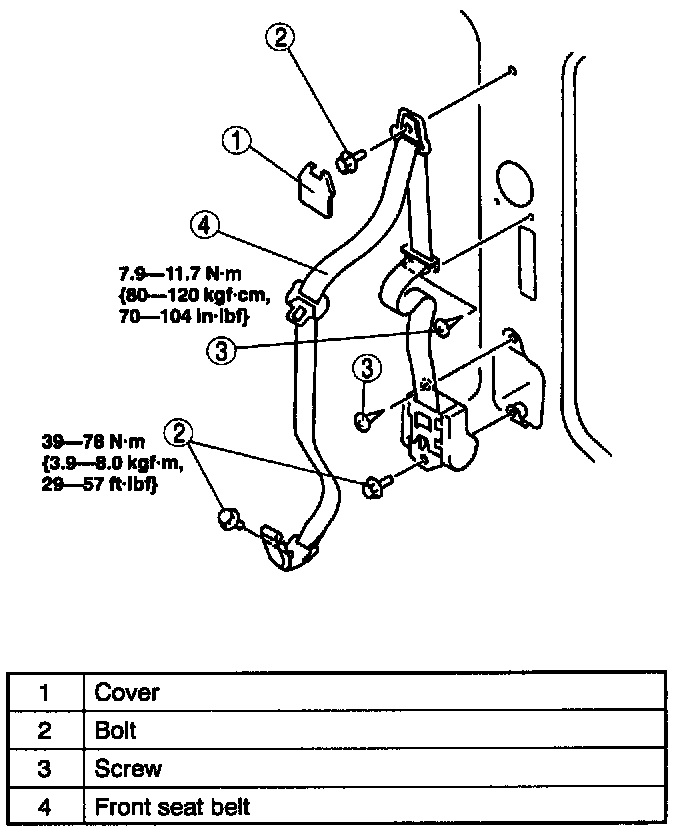

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
