Fuel Pump Removal/Installation

REMOVAL
1. Complete the "BEFORE REPAIR PROCEDURE".

2. Disconnect the negative battery cable.
3. Remove the fuel tank.

Fuel Tank

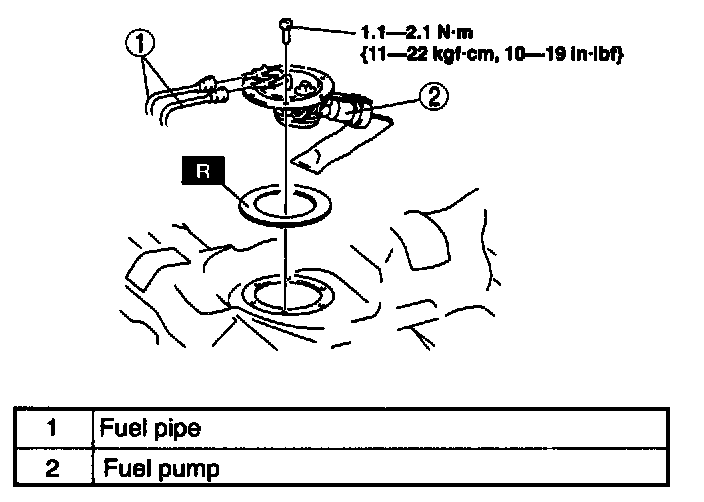

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. Complete the "AFTER REPAIR PROCEDURE".
