Fuel Injector Resistance Test

1. Disconnect the fuel injector connectors.

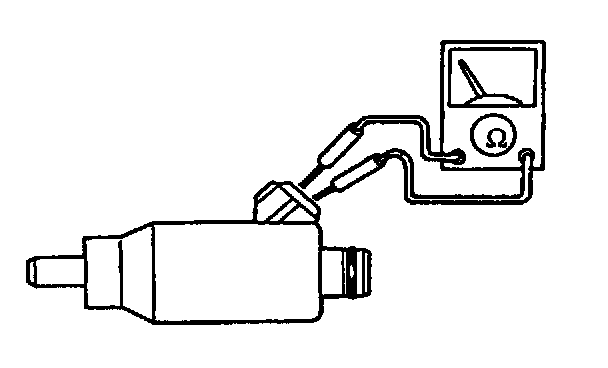

2. Measure the resistance of the fuel injector.

If not as specified, replace the fuel injector.

Resistance: 12 - 16 ohms (at 20°C {68°F})
