Front

WHEEL HUB BOLT REPLACEMENT

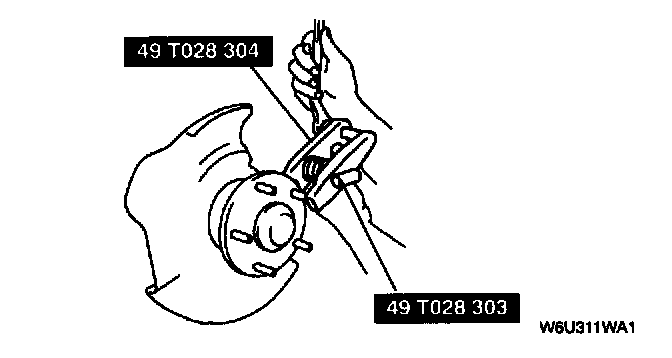

1. Remove the hub bolt by using the SSTs.

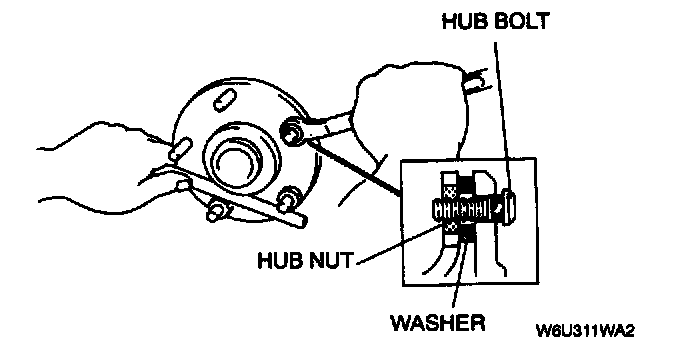

2. As shown in the figure, install the hub bolt into the wheel hub and set a washer and hub nut on the hub bolt.





3. Tighten the hub nut while holding the wheel hub by using the brass bar.
