Drive Belt: Adjustments

DRIVE BELT ADJUSTMENT [FS]

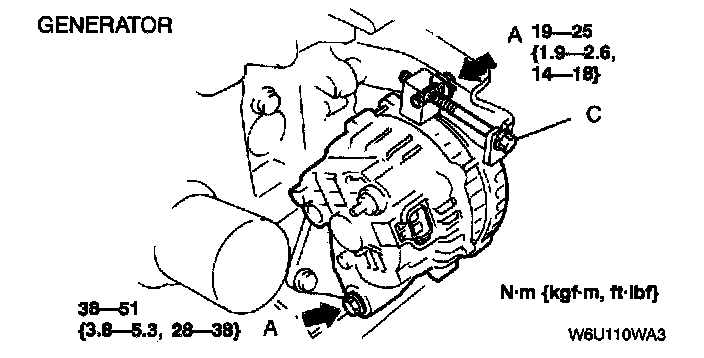

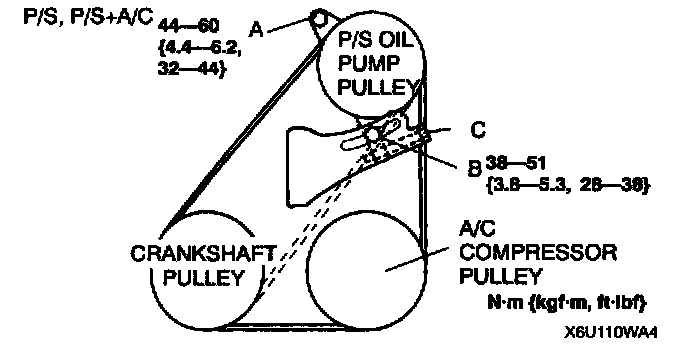

1. Loosen mounting bolts A and nut B.
2. Adjust the belt deflection or tension by turning the adjusting bolt C.








3. Tighten mounting bolts A and nut B.
4. Verify the belt deflection or tension.
