Home >> Mazda >> 1999 >> 626 ES L4-2.0L DOHC >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Pinpoint Tests >> Exterior Lighting System >> Pinpoint Test 4

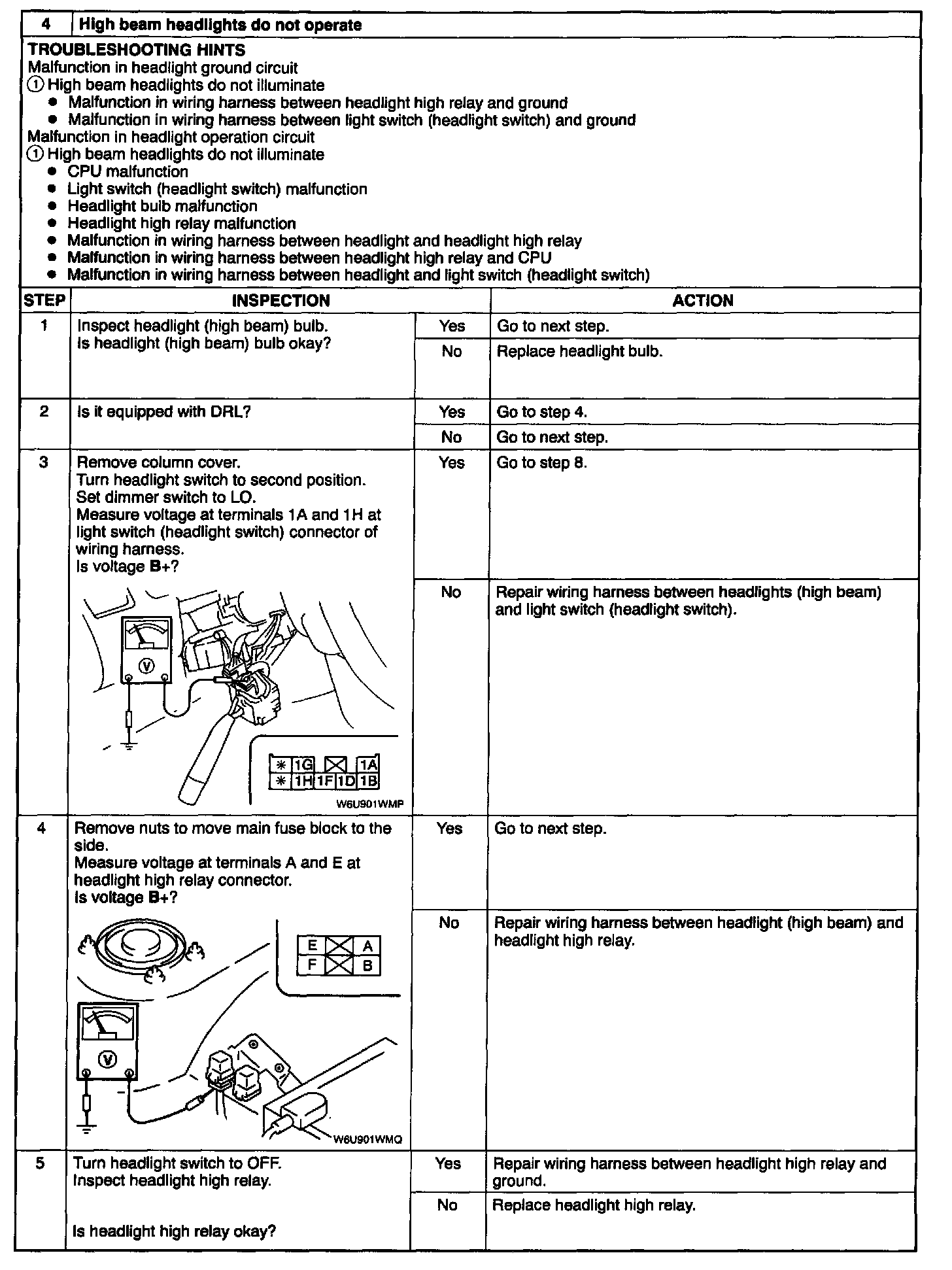

Pinpoint Test 4

Steps 1 Through 5:

Steps 6 Through 8:
