Hazard Warning Flasher: Testing and Inspection

FLASHER CONTROL MODULE INSPECTION

NOTE: Disconnect the flasher control module connector before checking for continuity at terminal B.

1. Measure the voltage at the flasher control module terminals as indicated below.
- If not as specified, inspect the parts listed under "Inspection area" and the related wiring harnesses.
- If the parts and wiring harnesses are okay but the system still does not work properly, replace the flasher control module.

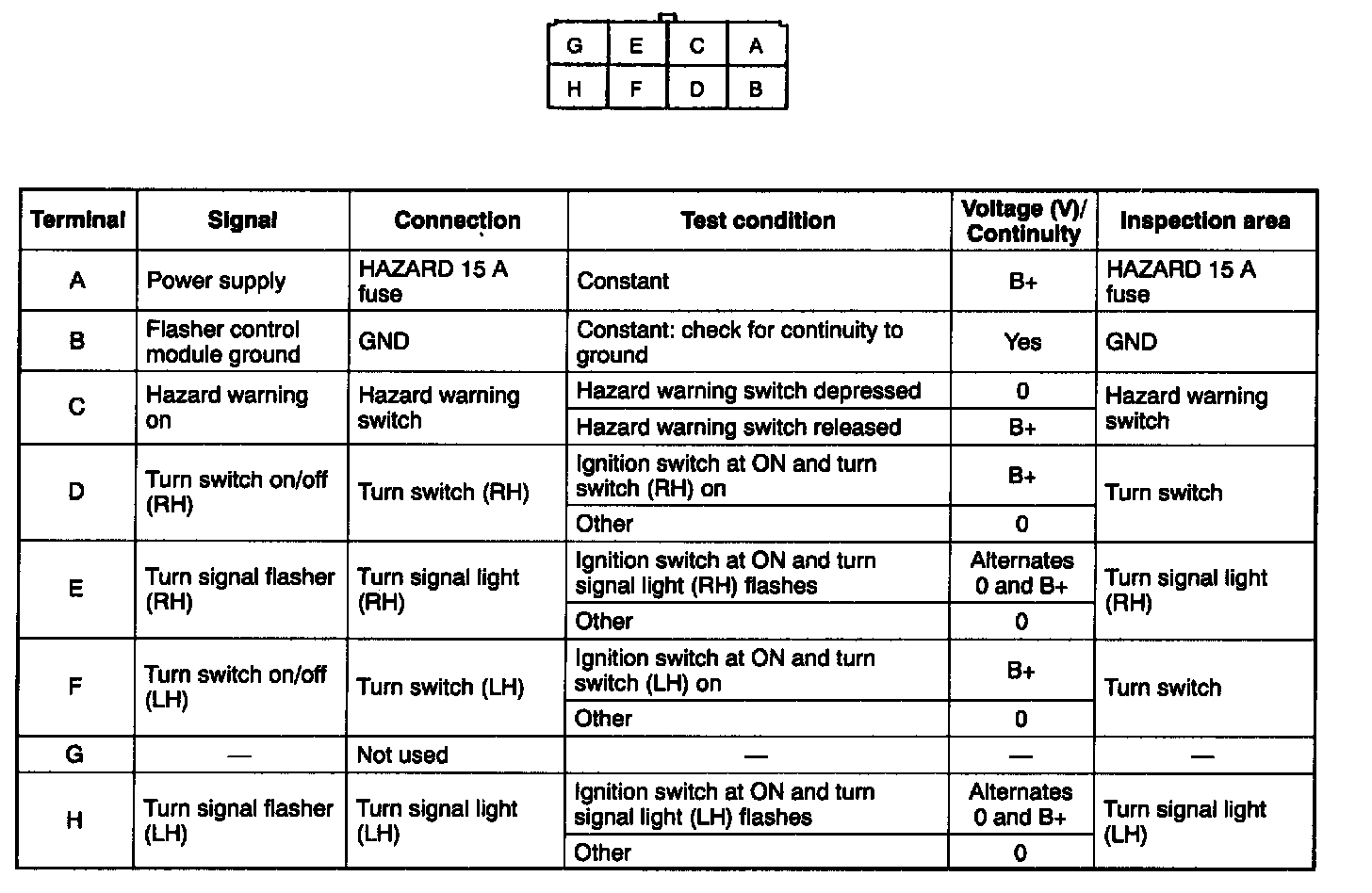

Terminal Voltage List (Reference)
