Mazda
>>
1999
>>
626 ES L4-2.0L DOHC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams
Heater And Air Conditioning Circuit:

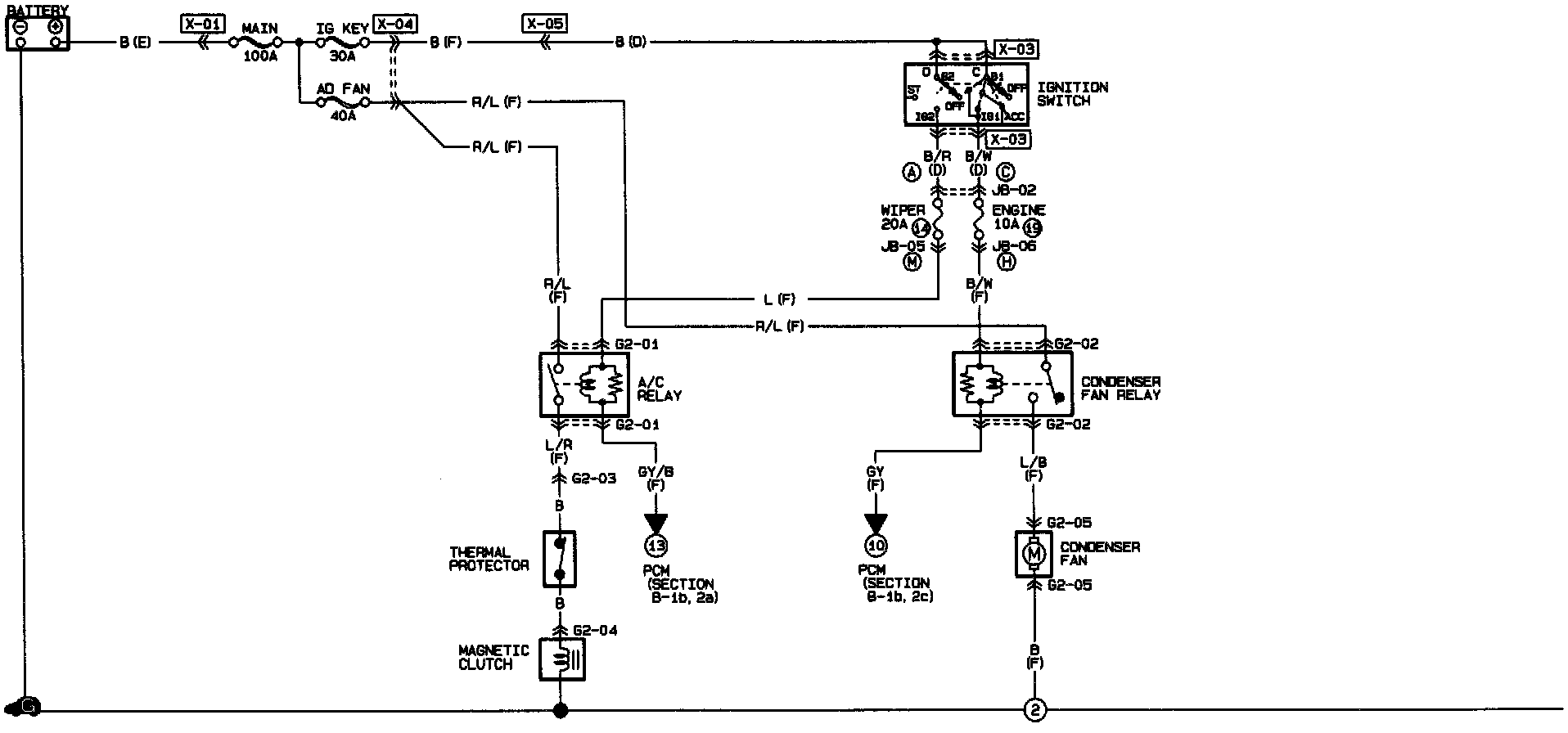

Condenser Fan System:
