Air Register: Testing and Inspection

SWING LOUVER INSPECTION







1. Remove the meter hood.

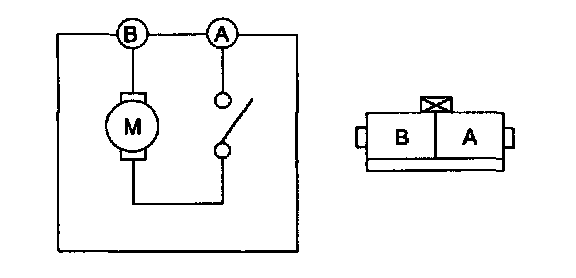

2. Connect battery positive voltage to terminal B and ground to terminal A of the swing louver.

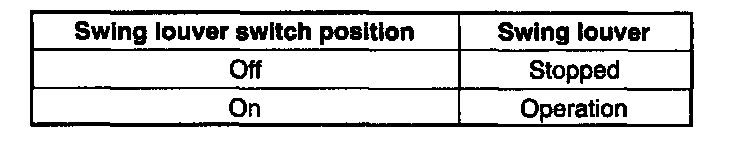

3. Verify that the swing louver operates as indicated.
If not as specified, replace the swing louver.
