Vacuum Brake Booster Check Valve: Testing and Inspection

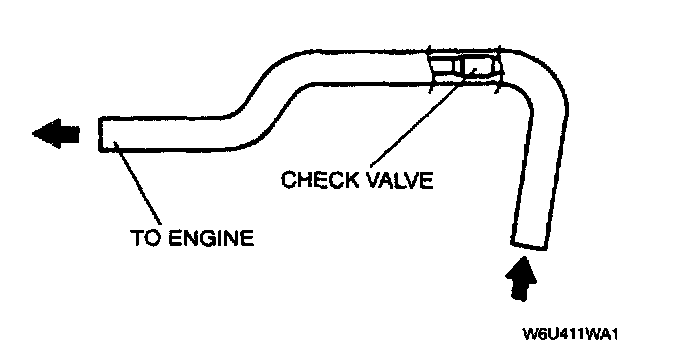

VACUUM LINE INSPECTION
1. Remove the clamps and vacuum hose.





2. Apply both suction and pressure to the engine-side hose, and verify that air blows only toward that side. If air flows in both directions or not at all, replace the vacuum hose.
