Brake Hose/Line: Service and Repair

BRAKE PIPE REMOVAL/INSTALLATION

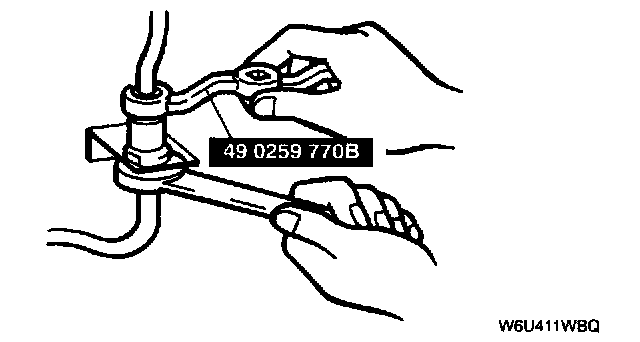

1. Remove the brake pipe by using the Special Service Tool (SST)

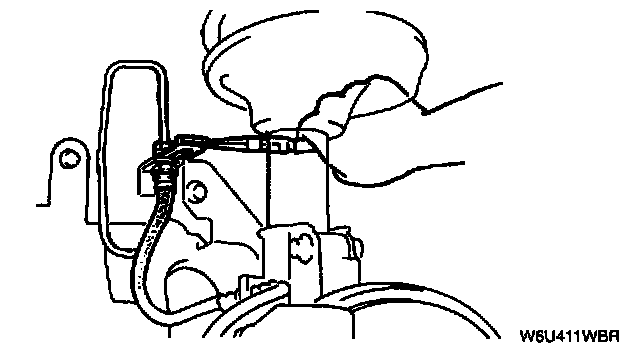

2. Disconnect the clip and remove the flexible hose from the bracket.





3. Secure the flexible hose in the bracket and connect the clip to it.
4. Connect the flexible hose to the brake pipe. Verify that the hose is not twisted.





5. Tighten the flare nut by using the SST Verify that the hose can not come in contact with any other parts of vehicle.
