Rear

REPLACEMENT

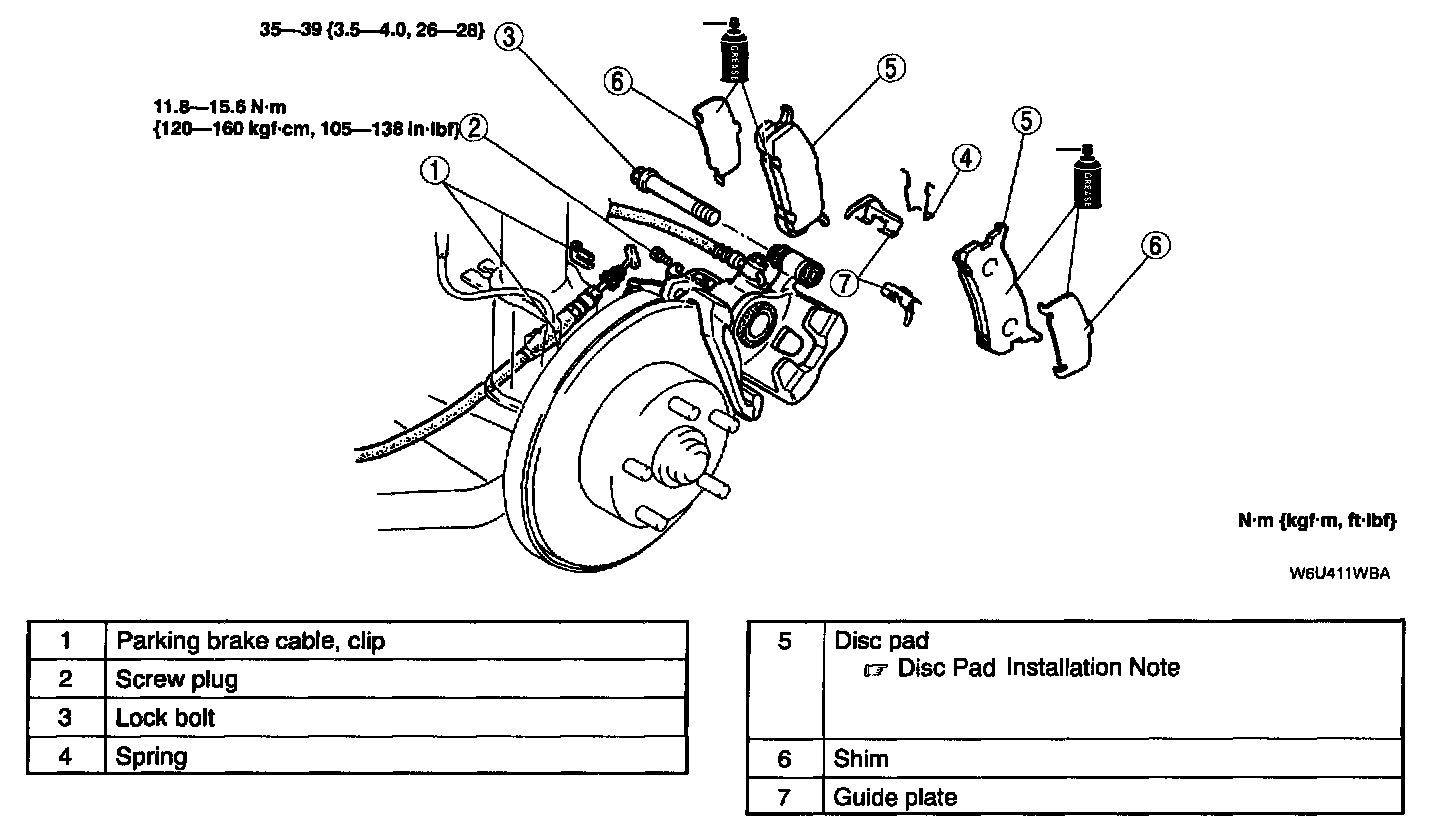

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

Disc Pad Installation Note





1. Turn the manual adjustment gear counterclockwise with an Allen wrench to pull the brake caliper piston inward. (Turn until it stops.)
2. Install the disc pads.
3. Turn the manual adjustment gear clockwise until the brake pads just touch the disc plate. Turn the manual adjustment gear back 1/3 turn.
