DISASSEMBLY/ASSEMBLY
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of removal.

Piston Disassembly Note

Caution: Blow the compressed air slowly to prevent the piston from suddenly popping out.

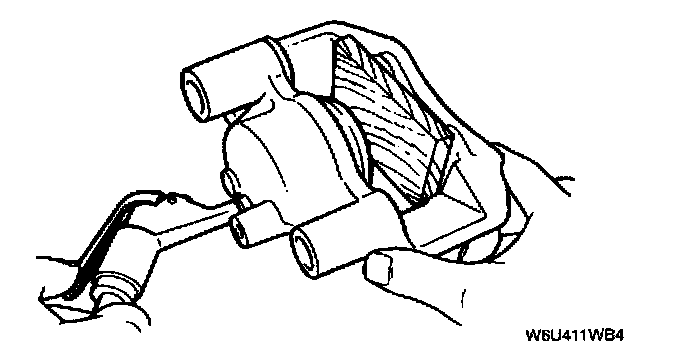

- Place a piece of wood in the caliper, then blow compressed air through the hole to force the piston out of the caliper.

Piston Seal Disassembly Note





- Remove the piston seal from the brake caliper by using the Special Service Tool (SST)
