Condenser HVAC: Testing and Inspection
1.
Inspect for cracks, damage, and oil leakage. If any are found, replace the condenser.
2.

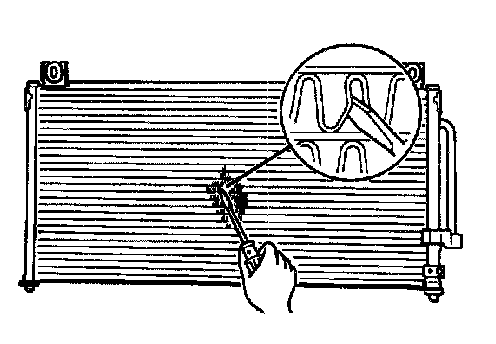

Inspect for bent fins. If any are bent, use a flathead screwdriver to straighten them.
