Blower Motor Resistor: Testing and Inspection

1. Disconnect the resistor connector.

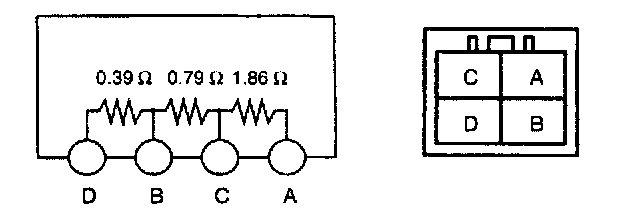

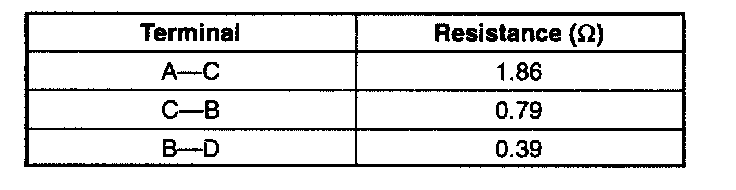

2. Verify the resistance between the terminals of the resistor by using an ohmmeter.
3. If not as specified, replace the resistor.
