Removal and Installation

1. Disconnect the actuator cable from the accelerator pedal.

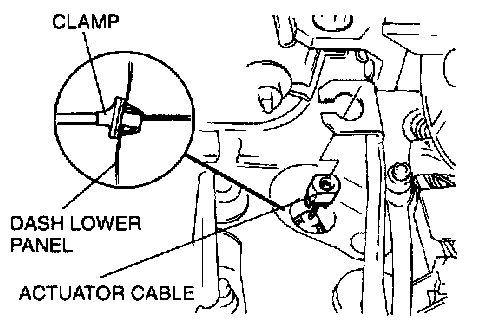

2. Remove the clamp from the inside of the dash lower panel.

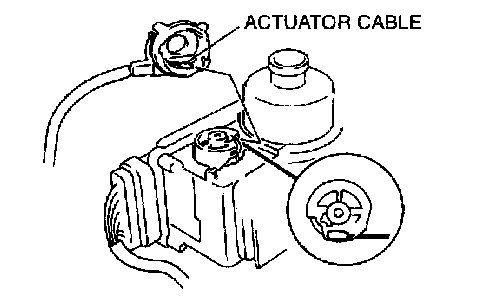

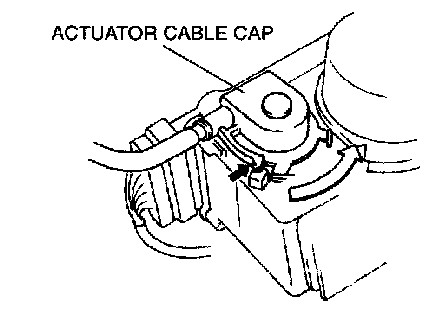

3. Remove the actuator cable cap from the cruise actuator by pusing the actuator cable cap tab and rotating the actuator cable cap counterclockwise.




4. Remove the actuator cable from the cruise actuator.
5. Install in the reverse order of removal.
6. Adjust the actuator cable.
