Clutch Pedal Assembly: Testing and Inspection

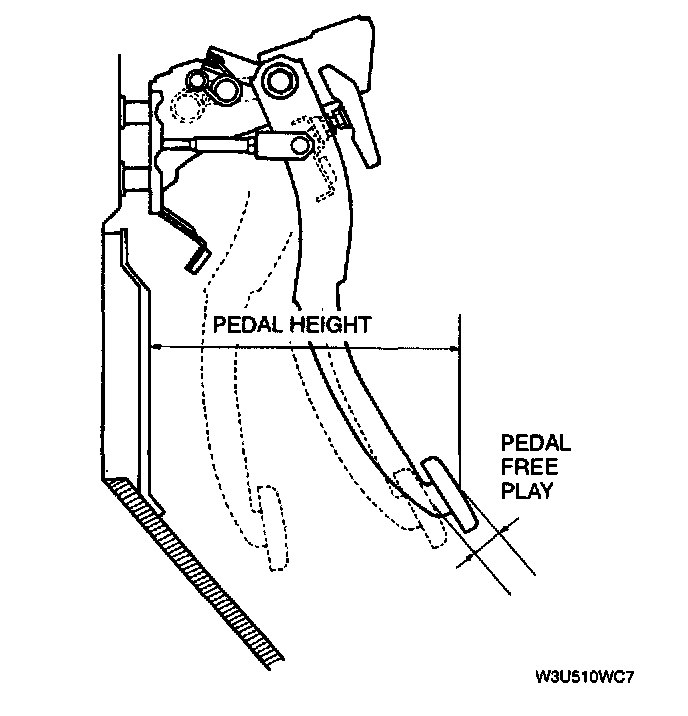

CLUTCH PEDAL INSPECTIONClutch Pedal Height Inspection
- Measure the distance from the upper surface of the pedal pad to the cabin carpet.
Pedal height 212 - 217 mm (8.35 - 8.54 inch) [with set plate]
Clutch Pedal Free Play Inspection
- Depress the clutch pedal by hand until clutch resistance is felt, and measure the pedal free play.
Free play 0.7 - 3.4 mm (0.03 - 0.13 inch)
Total free play 5.6 - 15.0 mm (0.23 - 0.59 inch)
