Clutch Pedal Assembly: Service and Repair

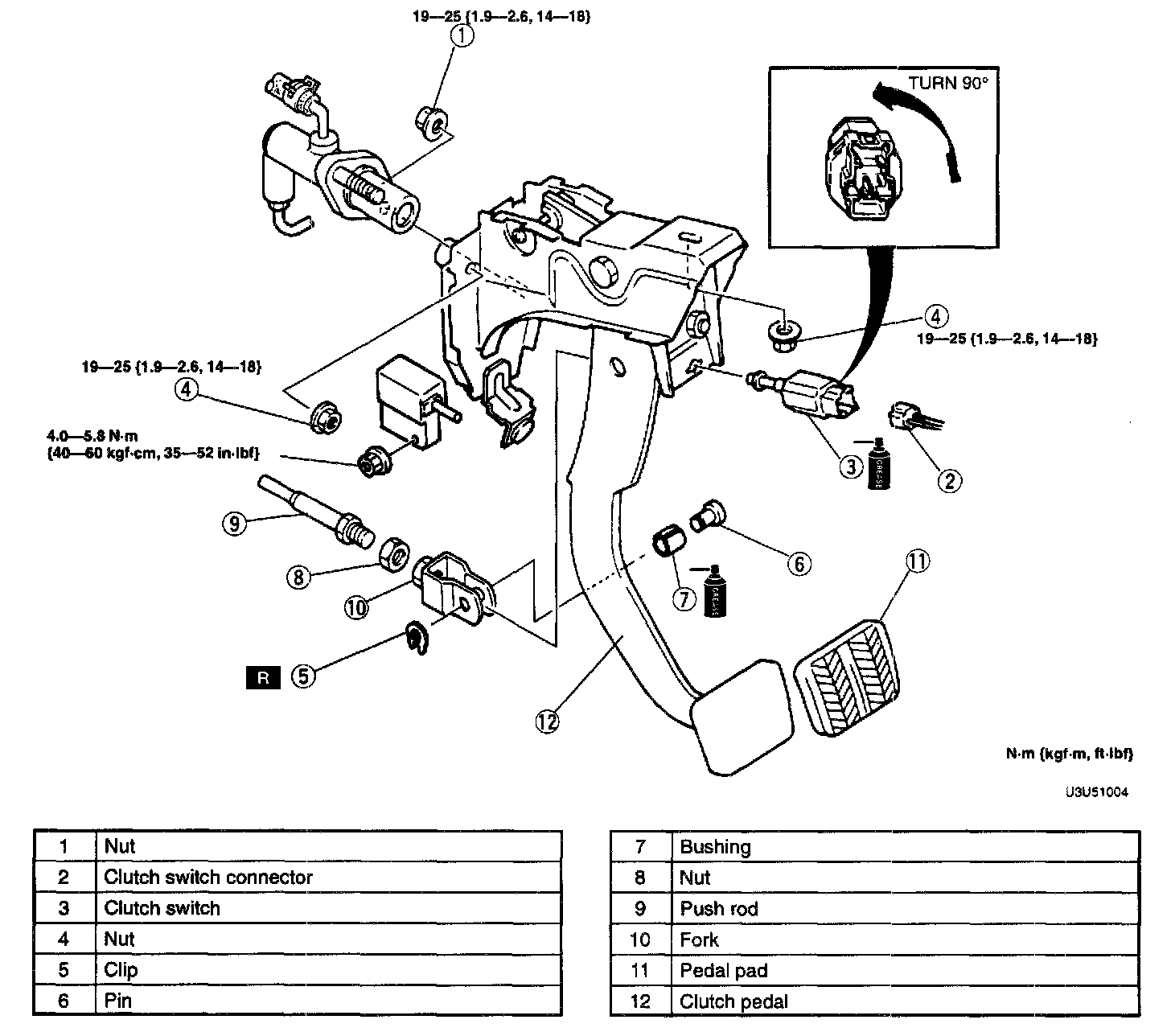

CLUTCH PEDAL REMOVAL/INSTALLATION





1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. After installation, adjust the clutch pedal.
