Removal and Installation

REMOVAL/INSTALLATION

CAUTION: Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the harness if it is pulled by mistake. Before performing the following procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate place where the sensor will not be pulled by mistake while servicing the vehicle.

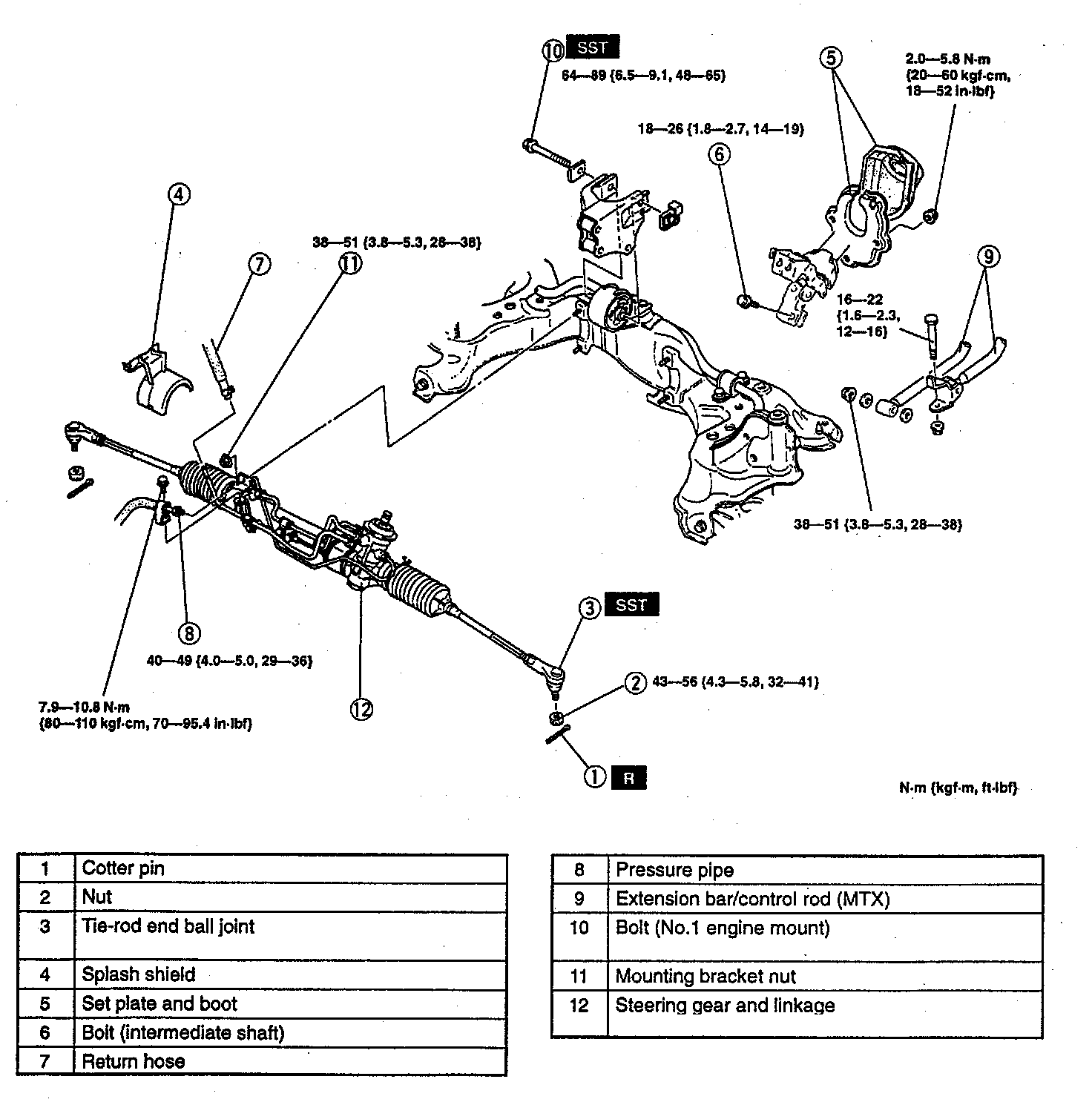

1. Remove in the order indicated in the illustration, noting the following steps.
2. Install in the reverse order of removal indicated in the noting the following steps.

Tie-rod End Ball Joint Removal Note (3)
1. Remove the tie rod nut.

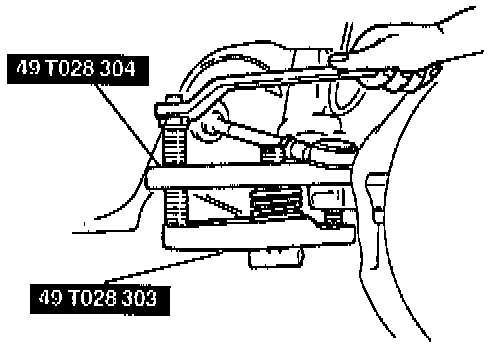

2. Separate the tie-rod end from the steering knuckle by using the Special Service Tools (SSTs).

Bolt (No.1 Engine Mount) Removal Note (10)





1. Support the engine by using the SSTs.
2. Remove the engine mount bracket bolt.

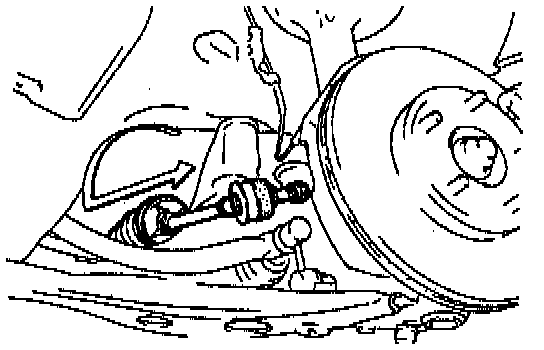

Steering Gear And Linkage Removal Note (12)





- Remove the steering gear from the right side of the vehicle.

Mounting Bracket Nuts Installation Note (11)





1. Hand-tighten the nuts indicated 4 and 3 in the illustration.
2. Tighten the mounting bracket nuts to the specified torque in order shown.

Tightening torque: 38 - 51 Nm (28 - 38 ft. lbs.).
