Home >> Mazda >> 1998 >> Protege ES L4-1839cc 1.8L DOHC >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Power Steering >> Power Steering Pump >> Service and Repair >> Removal and Installation

Removal and Installation






REMOVAL/INSTALLATION

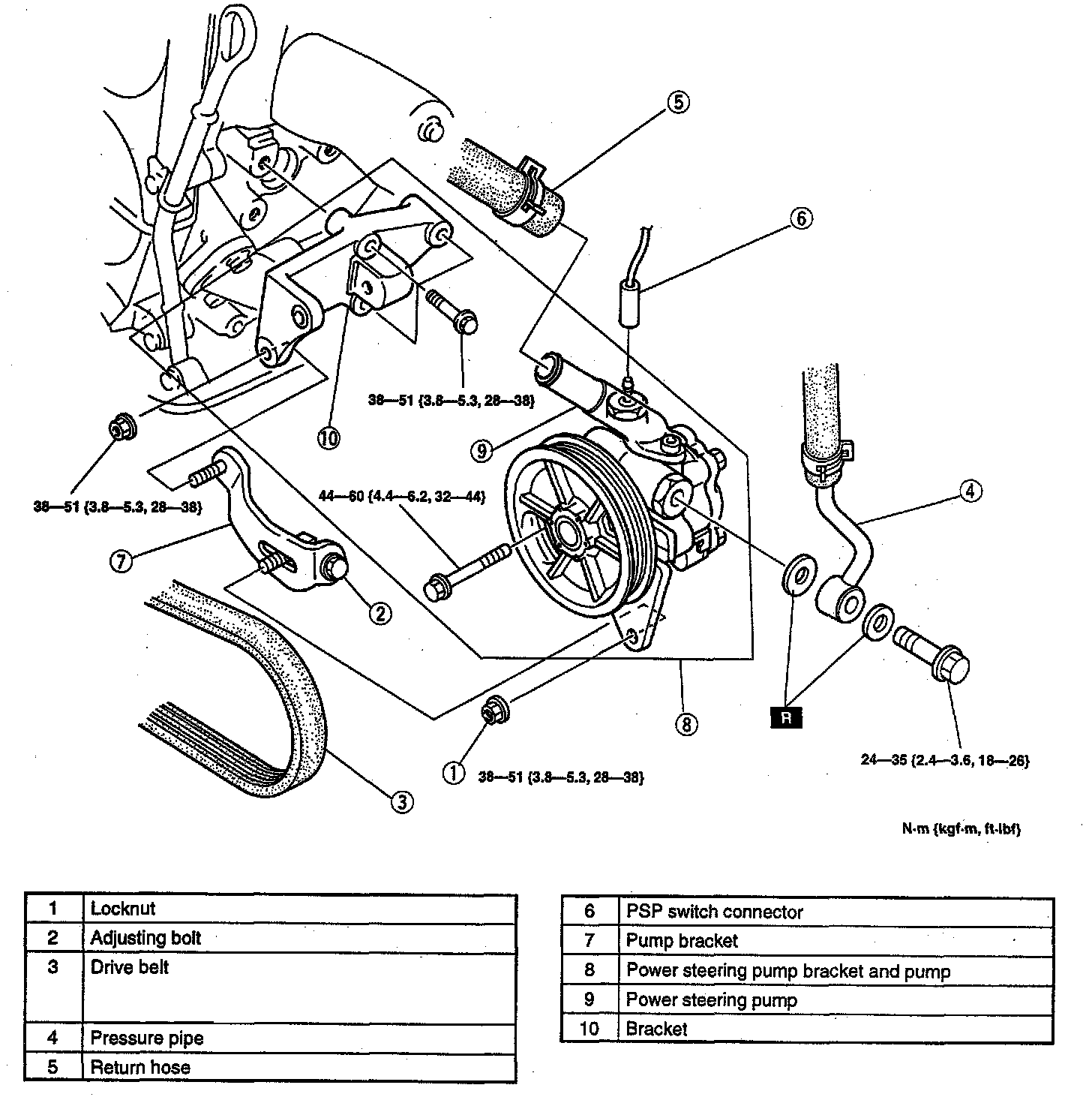

1. Remove in the order indicated in the illustration.
2. Install in the reverse order of removal indicated in the illustration.
