Clockspring Assembly / Spiral Cable: Testing and Inspection

1. Remove the column cover.
2. Disconnect the clock spring connectors.
3. Remove the driver-side air bag module.

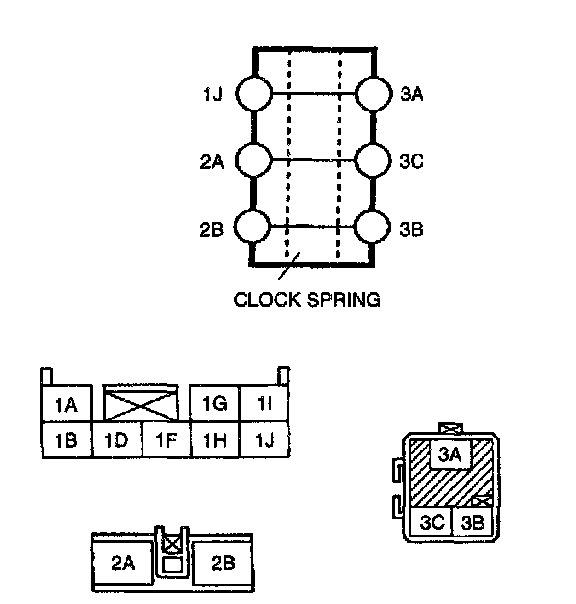

4. Inspect for continuity between the clock spring terminals by using an ohmmeter.

NOTE:
^ When terminals 2A and 2B are disconnected from the vehicle's main harness, they are shorted to prevent unexpected air bag deployment.

5. If not as specified, replace the clock spring.
