Clockspring Assembly / Spiral Cable: Adjustments

CAUTION:
^ The clock spring will brake if it is over-wound. Do not force the clock spring when turning it.

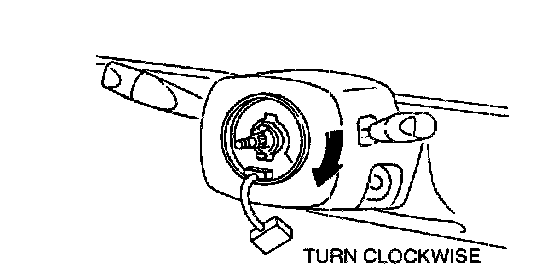

1. Turn the clock spring clockwise unit it stops.

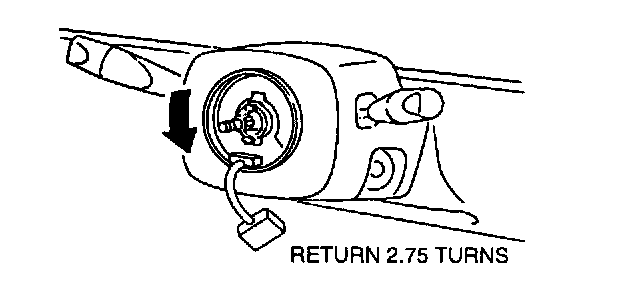

2. Turn the clock spring counterclockwise 2.75 turns.

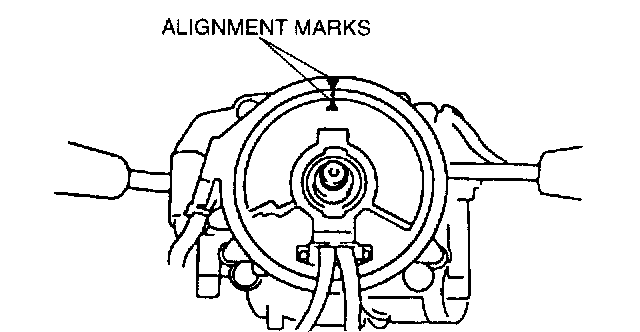

3. Align the mark or the clock spring with that on the outer housing.
