Sunroof / Moonroof Relay: Testing and Inspection

1. Remove the sunroof relay.

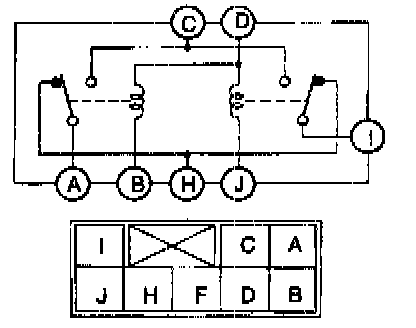

2. Apply battery positive voltage and inspect for continuity between the sunroof relay terminals by using an ohmmeter.
3. If not as specified, replace the sunroof relay.
