Continuity Test

FUEL PUMP CONTINUITY TEST

1. Remove the rear seat cushion.
2. Remove the service hole cover.

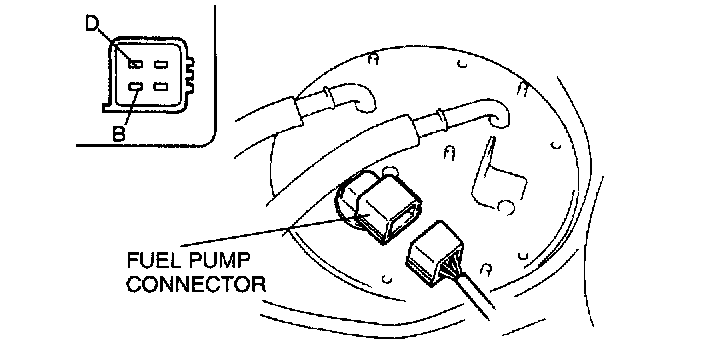

3. Disconnect the fuel pump connector.




4. Inspect for continuity between fuel pump connector terminals B and D.
5. If there is no continuity, carry out the "Fuel Pump Maximum Pressure". (refer to FUEL PRESSURE)
