Evaporative Emission Control Canister: Testing and Inspection

CHARCOAL CANNISTER INSPECTION

1. Remove the charcoal canister. (Refer to EMISSION CONTROL SYSTEM, SERVICE AND REPAIR/FUEL TANK AREA.)

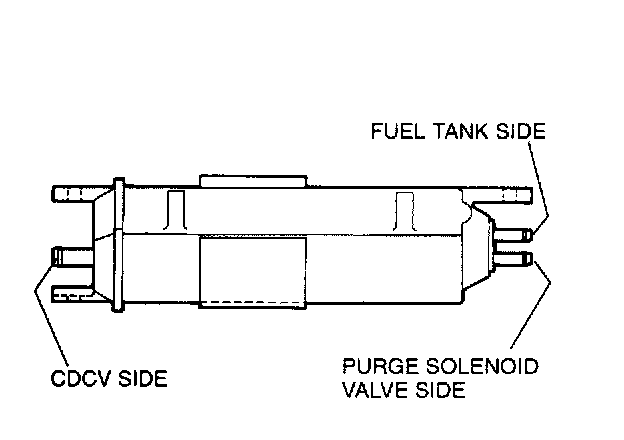

2. Plug the charcoal canister CDCV side port and purge solenoid valve side port.
3. Blow air into the charcoal canister and verify that no air leaks.
4. If air leaks, replace the charcoal canister.
