Daytime Running Lamp Resistor: Testing and Inspection

CAUTION:
^ Determine and correct the cause of the burnt fuse before replacing it. If the fuse is replaced before doing this, it may burn again.

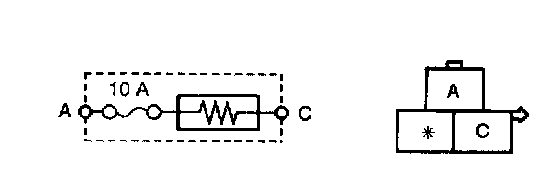

1. Disconnect the DRL resistor connector.
2. Confirm that the DRL resistor 10 A fuse is okay.
3. If the DRL resistor 10 A fuse is burnt, exchange the new DRL resistor 10 A fuse.

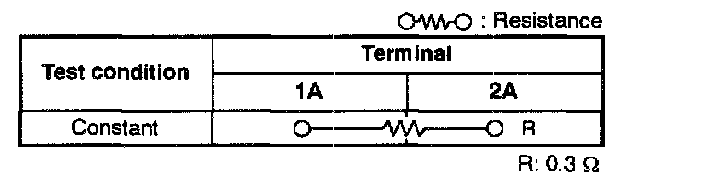

4. Measure the resistance between the DRL resistor terminals by using an ohmmeter.
5. If not as specified, replace the DRL resistor
