Center Mounted Brake Lamp: Service and Repair

Vehicles Not Equipped with the Rear Spoiler




1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
3, Install in the reverse order of removal.

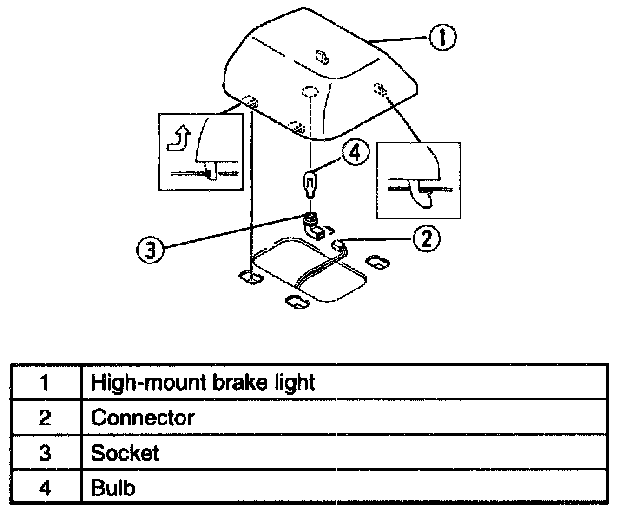

Vehicles Equipped with the Rear Spoiler




1. Disconnect the negative battery cable.
2. Remove the rear spoiler.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
