Thermostat: Service and Repair

1. Disconnect the negative battery cable.
2. Drain the engine coolant.
3. Remove the air cleaner.

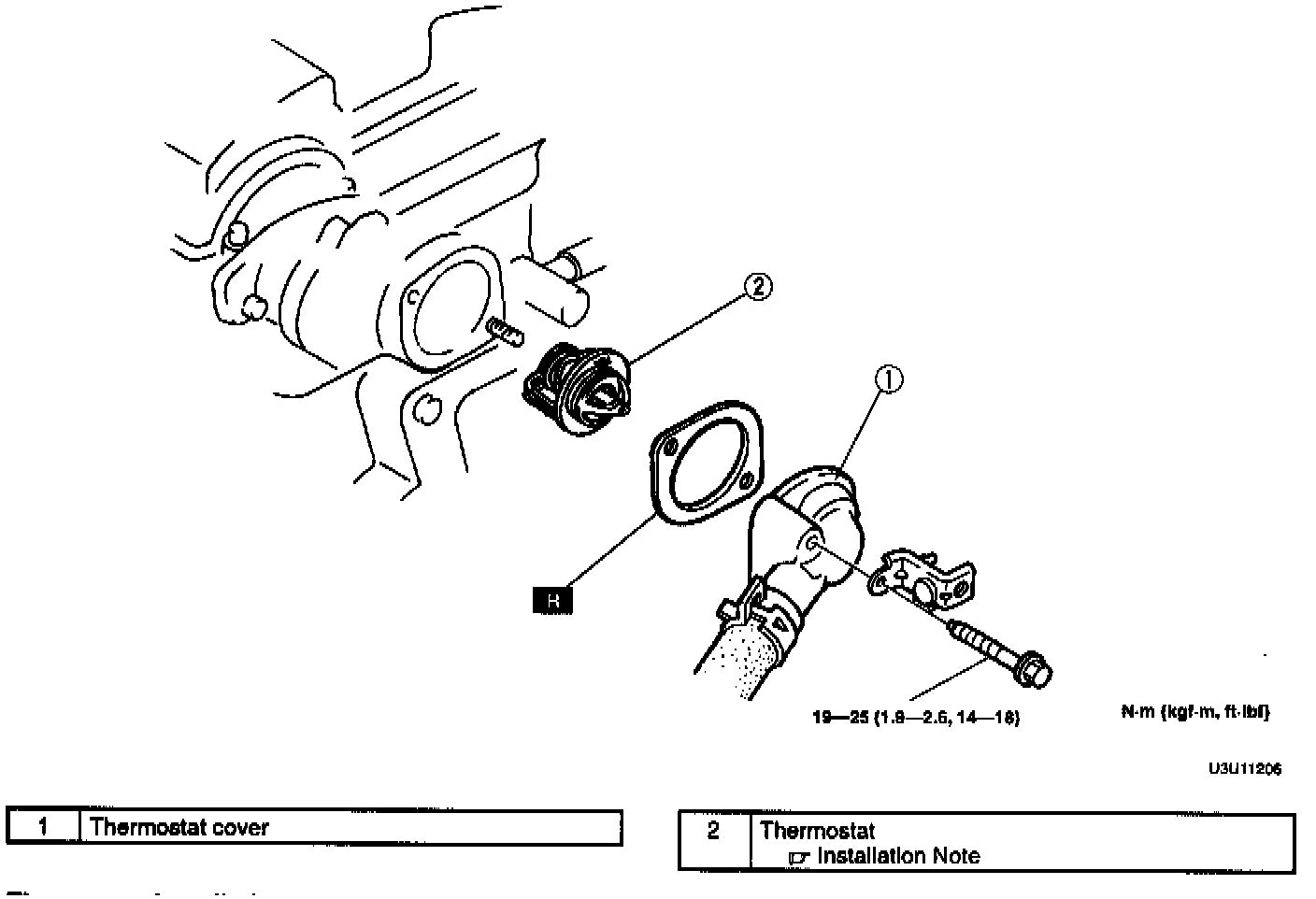

4. Remove in the order indicated in the table.





5. Install in the reverse order of removal.





6. Fill the radiator and radiator reservoir with the specified amount and type of engine coolant.
7. Start the engine and inspect for coolant leakage.

THERMOSTAT INSTALLATION NOTE
1. Install the thermostat into the cylinder head with the jiggle pin at the top.

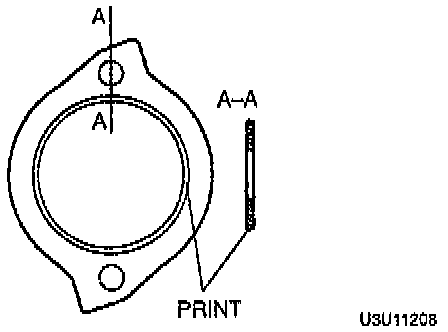

2. Install a new gasket with the seal print side facing the cylinder head.
