Vacuum Brake Booster: Service and Repair

REMOVAL AND INSTALLATION

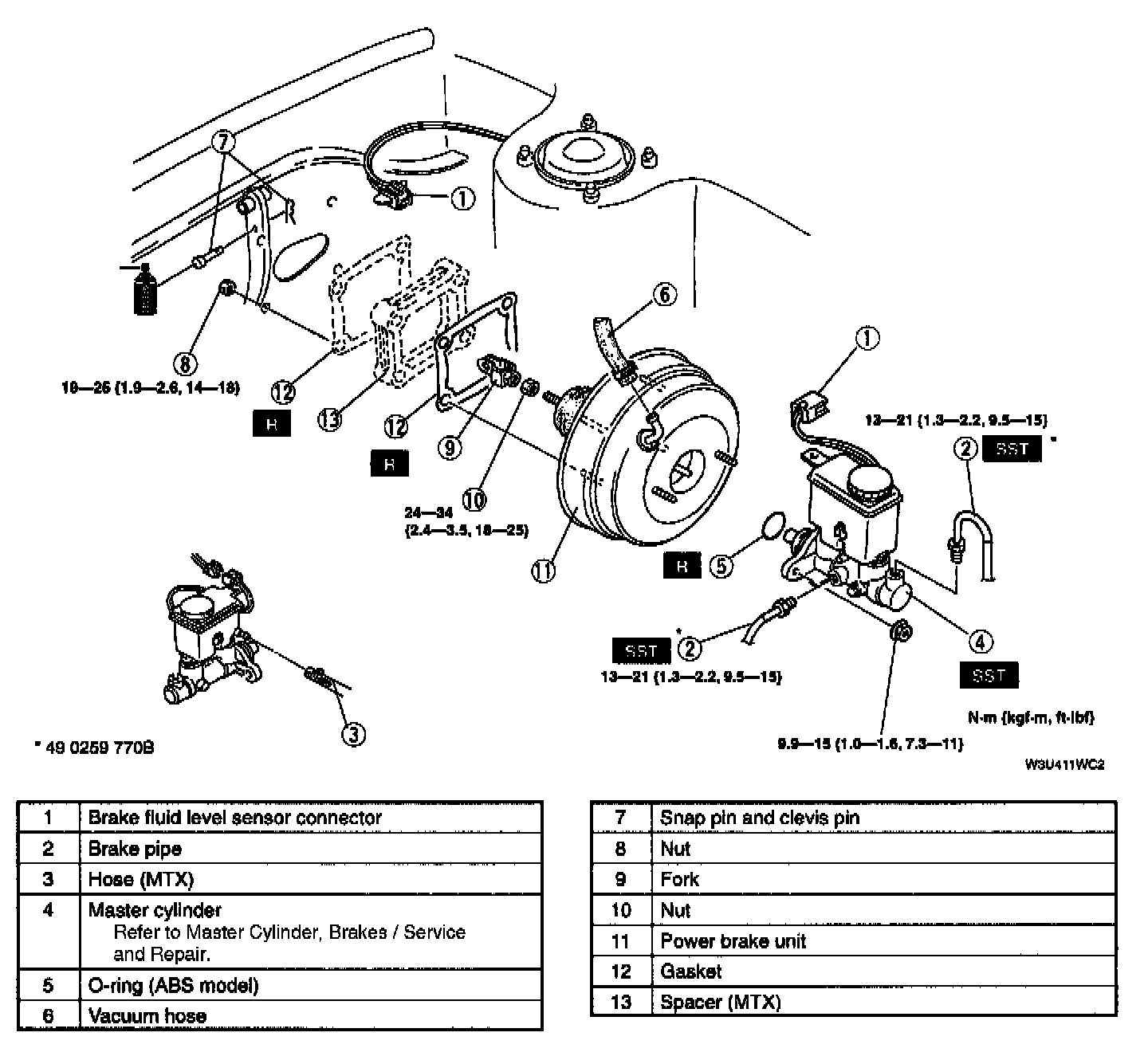

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

3. Take the following steps after installation.
(1) Adjust the brake pedal. Refer to Brake Pedal Assembly / Testing and Inspection and to Adjustments.
(2) Make an on-vehicle inspection of the unit. Refer to Testing and Inspection.
