Vacuum Brake Booster Check Valve: Testing and Inspection

VACUUM LINE INSPECTION

1. Remove the clamps and the hose.

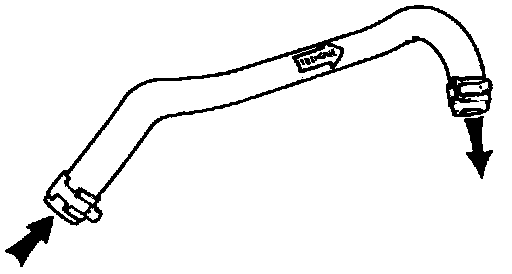

2. Apply both suction and pressure to the engine-side of the hose, and verify that air flows only toward that side. If air flows in both directions or not at all, replace the vacuum hose.
