Parking Brake Lever: Testing and Inspection

INSPECTION

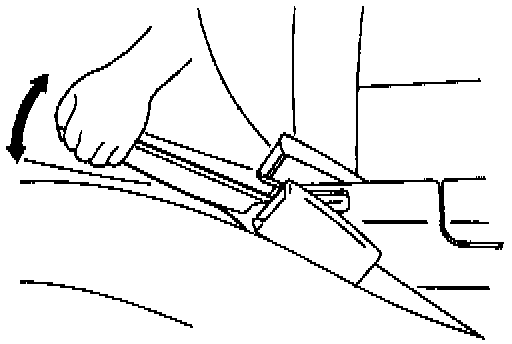

Verify that the stroke is within the specification when the parking brake lever is pulled with a force of 98 N (10 kgf, 22 lbs.).

Stroke: 5 - 7 notches
