Parking Brake Cable: Service and Repair

REMOVAL AND INSTALLATION
1. Remove the rear console.

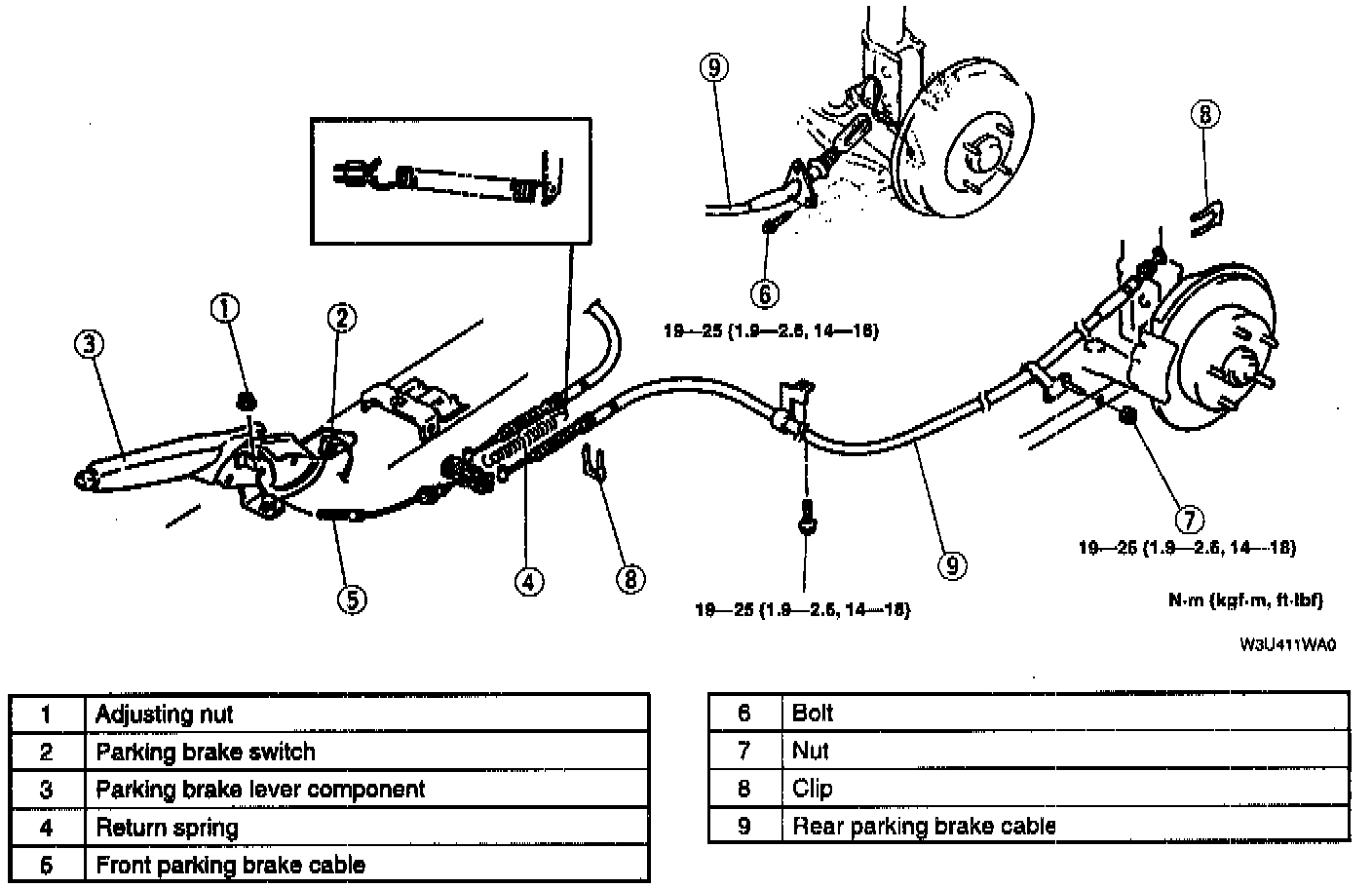

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal indicated in the table.
4. After installation, adjust the parking lever stroke.
