Hydraulic Control Assembly - Antilock Brakes: Service and Repair

ABS HYDRAULIC UNIT REMOVAL/INSTALLATION

1. Remove the air cleaner and air intake hose.

2. Remove the battery and carrier.

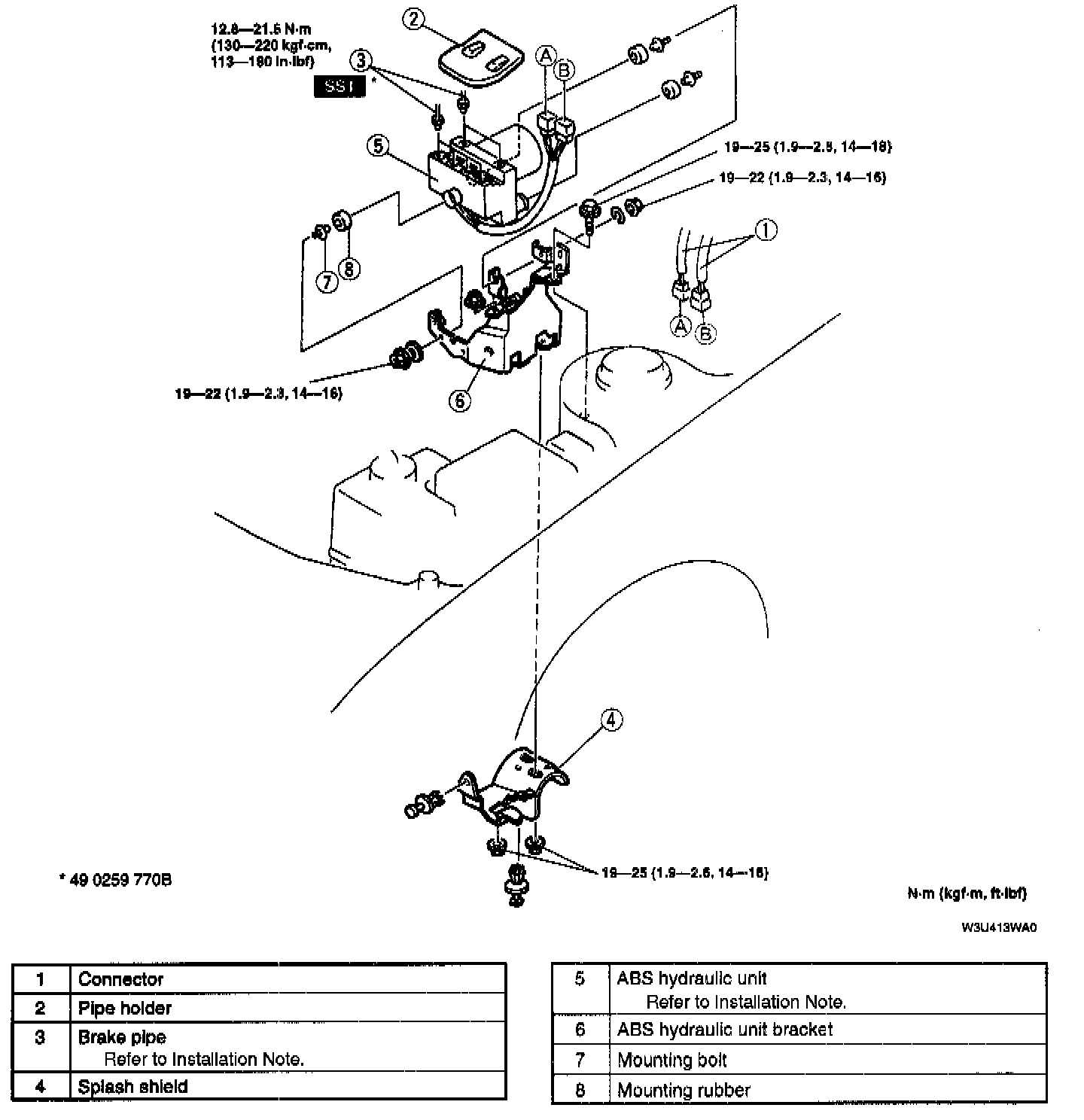

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

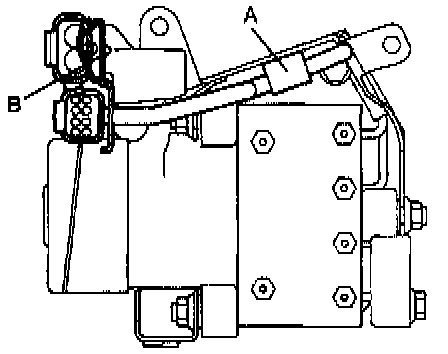

ABS Hydraulic Unit Installation Note





1. Clamp the harness to point A of the bracket.

2. Install the band around point B of the bracket and the harness, and tighten the band until it contacts the bracket.

3. Leave about seven notches on the band end and cut off the rest.

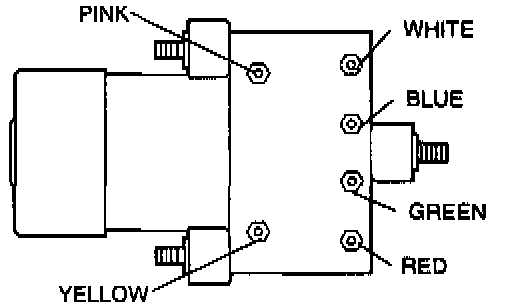

Brake Pipe Installation Note





- Align the colors on the brake pipes with the pipe positions of the ABS hydraulic unit as indicated, and install the pipes.
