Brake Proportioning/Combination Valve: Service and Repair

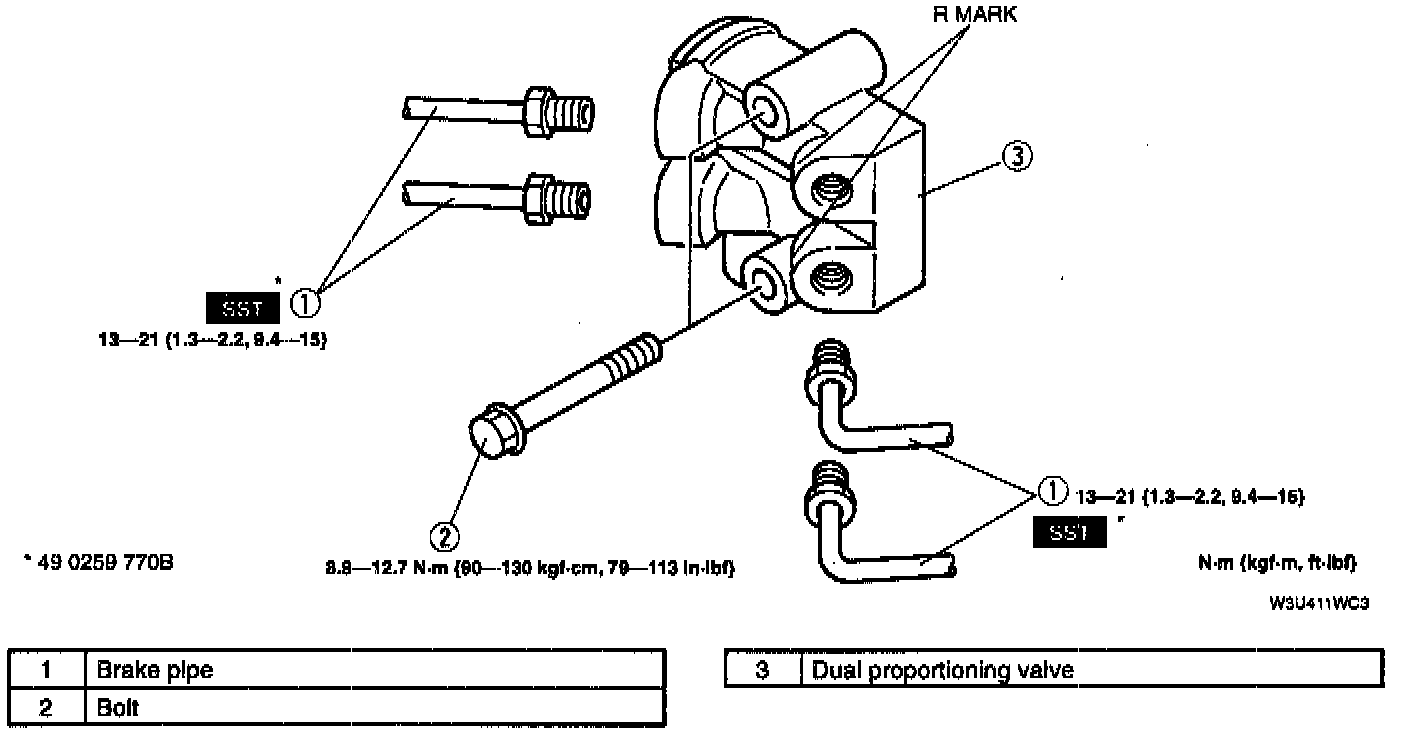

REPLACEMENT
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
