Rear Scuff Plate

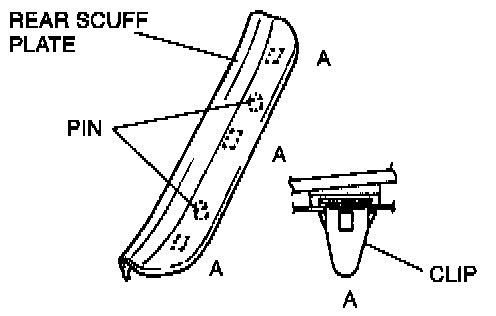

Rear Scuff Plate
1.
Pull the rear
scuff plate
upward to disengage the clips and pins from the body, and remove the rear scuff plate.
2.
Install in the reverse order of removal.
