Carpet: Service and Repair




1. Disconnect the negative battery cable.
2. Remove the dashboard.
3. Remove the front seat.
4. Remove the front and rear scuff plate.
5. Remove the B-pillar lower trim.
6. Remove the front seat belt lower anchor.
7. Remove the seat side compartment.
8. Remove the rear seat cushion and rear seat back.

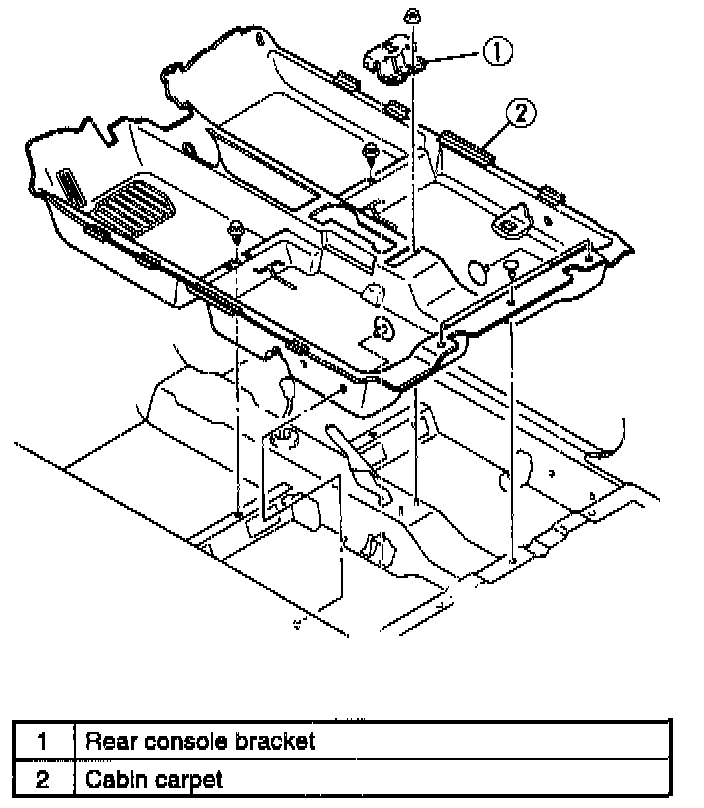

9. Remove in the order indicated in the table.
10. Install in the reverse order of removal.
